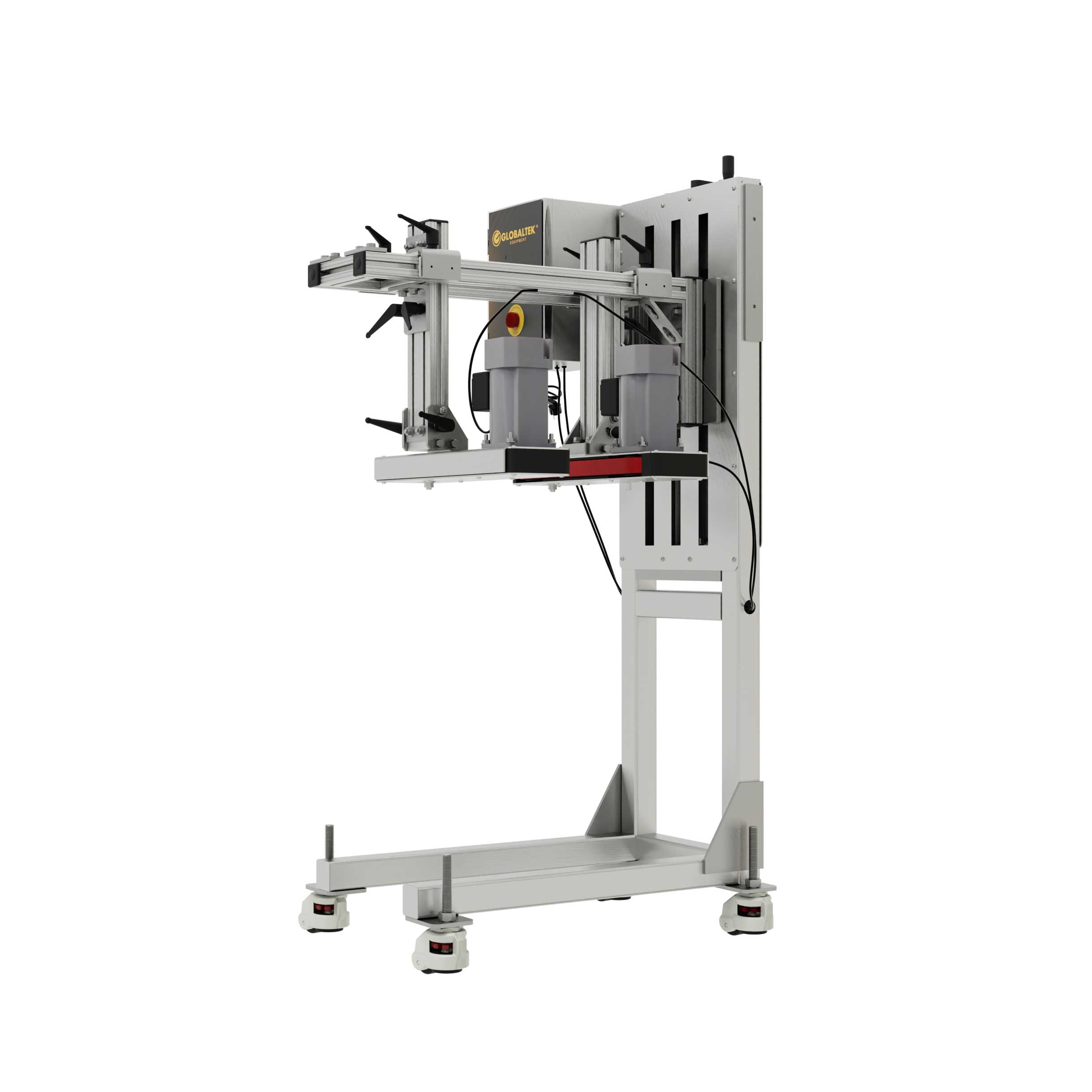

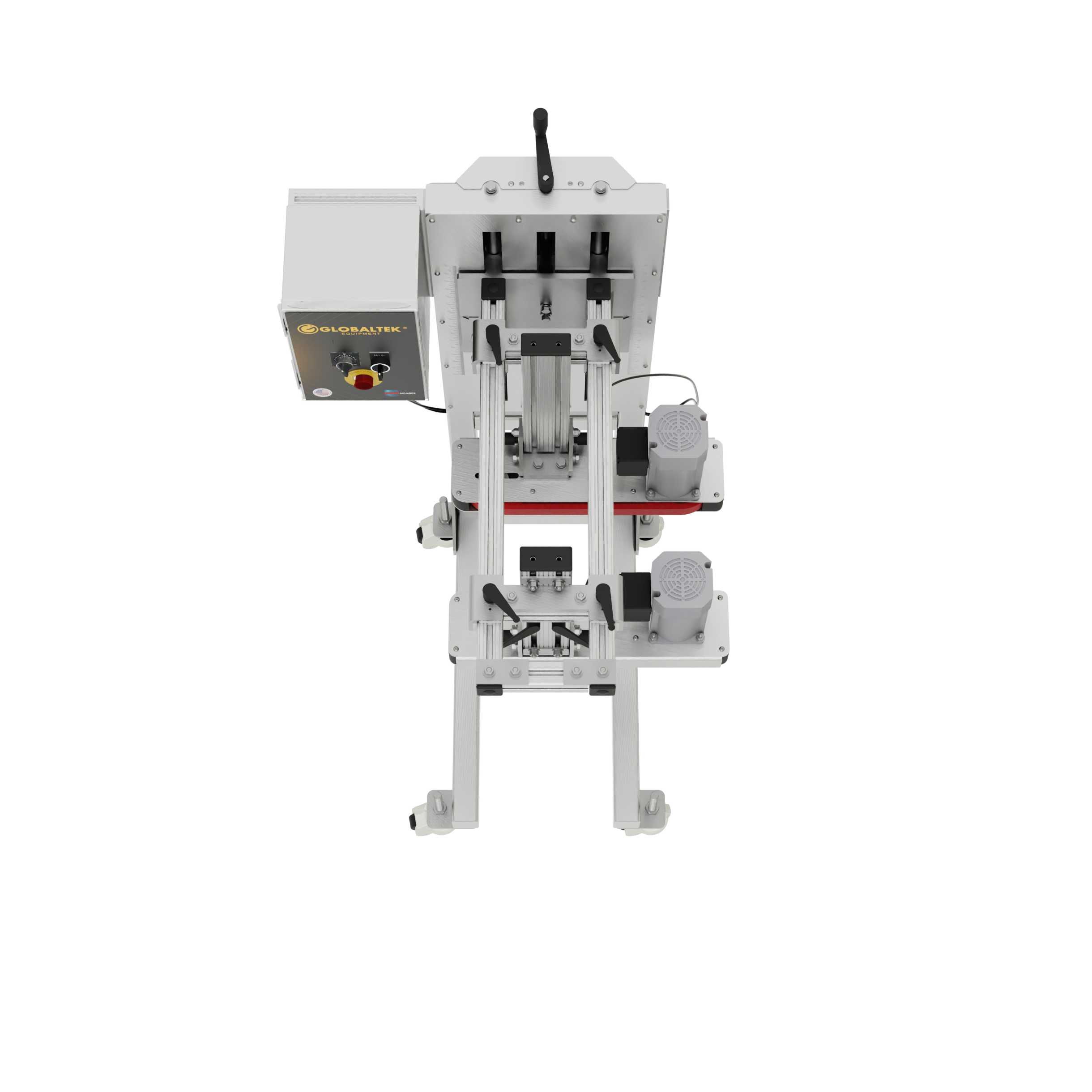

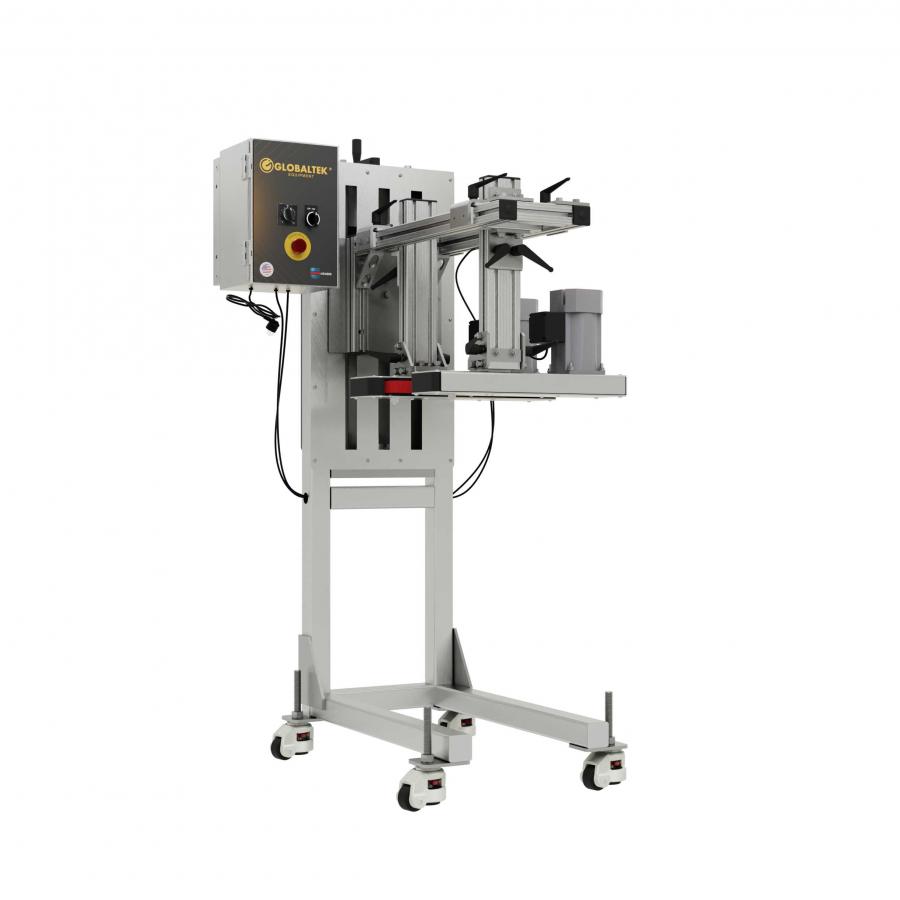

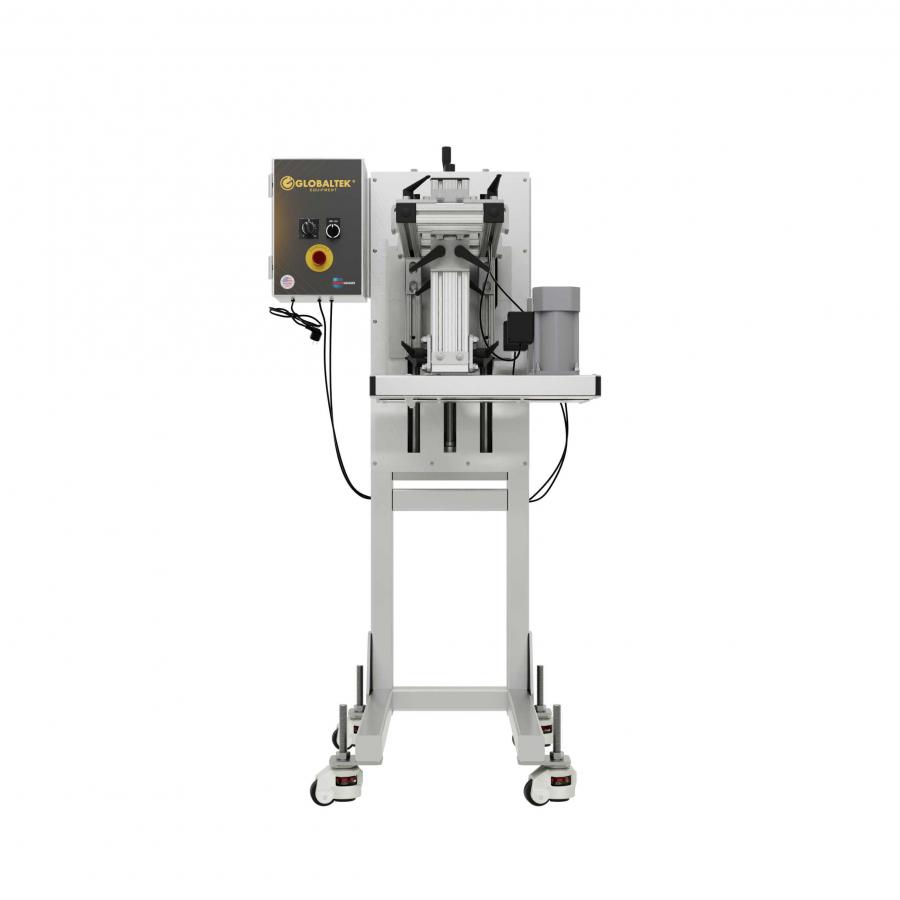

GLOBALTEK® C-Frame 12” Long Gap Transfer Bottomless Conveyor

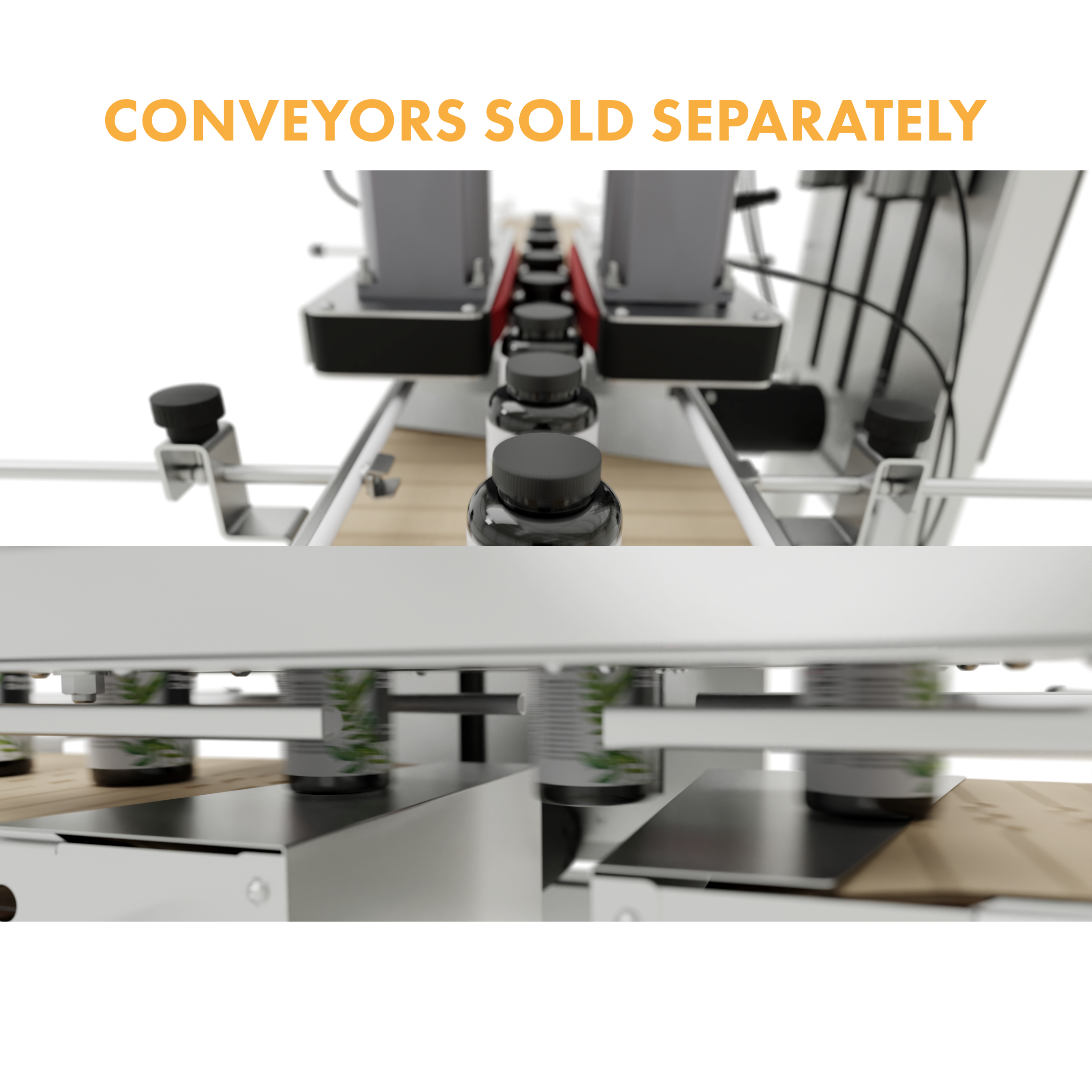

The GLOBALTEK® Gap Transfer Conveyor is designed to smoothly transfer filled or empty containers between conveyors by securely gripping their sides, preventing tipping during the transition. It’s ideal for bottom coding, label inspection, de-pucking, and precise container spacing.

With independently adjustable, tool-less gripper belts, it accommodates containers up to 8" in diameter and 13" in height. Its compact C-frame design enables seamless integration over existing conveyor lines, making it ideal for space-constrained production areas.

The unit features variable speed control and supports a wide range of packaging types, including bottles, boxes, and flexible pouches.


MAIN FEATURES
  • Manufactured in the USA using 100% UL-certified components
  • Durable welded stainless steel and aluminum frame
  • Tilting head design accommodates tapered bottles
  • Height-adjustable for versatile line integration
  • All adjustments include position indicators for easy recipe setup
  • Emergency stop (E-stop) push button for safety
  • Variable speed operation up to 80 ft/min
  • Built-in pinch point protection for operator safety
  • Ratchet casters with leveling pads.



TECHNICAL DATA
  • AC Brother gearmotor
  • Teco VFD
  • Electrical requirements: 115 V / 1 PH / 60 Hz / 5 Amps
  • Belt width adjusts to: 0-8”
  • Max container height: 13”
  • Belt size: 12” L x 1” H
  • Floor to belt height: Minimum:26”  Maximum: 44”



OPTIONAL FEATURES
  • Print head bracket
  • Washdown duty motor


WARRANTY
  • 12 months (limited warranty)

Frequently Asked Questions

1. What is the main purpose of this bottomless Conveyor?

This machine is designed to transfer containers between conveyors while enabling bottom coding, label inspection, de-pucking, or spacing. It grips containers from both sides using independently adjustable gripper belts and offers precise control with a variable speed drive.


2. What types of containers can it handle?

It accommodates round, square, or irregular containers up to 12” in diameter. Gripper belt spacing is adjustable from 0” to 8” to handle a wide range of product sizes.


3. Can it be integrated with existing conveyor systems?

Yes, it integrates seamlessly with all of our standard conveyors and most third-party inline conveyor systems. Custom mounting options are available if needed.


4. Is it suitable for food-grade or cleanroom applications?

Yes. The unit features a stainless-steel frame and UL-certified components. It can be configured for food, beverage, pharmaceutical, or sanitary environments upon request.


5. What motor and speed control does it use?

It comes equipped with an AC gearmotor and a TECO variable frequency drive (VFD) for precise speed control. The system supports speeds up to 80 ft/min.


6. Is the belt spacing tool-free to adjust?

Yes. The gripper belts are independently adjustable using an easy-adjust handle wheel. No tools are required to change spacing.


7. What add-ons are available?

Optional features include print head brackets, and washdown duty motors.


8. What’s the maintenance requirement?

Minimal. The unit is built with durable components and designed for industrial use. Regular inspection of belts and cleaning of the frame is typically sufficient.


9. Do you offer custom builds or modifications?

Absolutely. We can adjust frame dimensions, motor type, belt configuration, or controls to match your line requirements. Contact us to discuss your setup.

No posts found

Write a review
Regular Price: $4,850.00
$4,365.00
You save: $485.00 (10%) Save 10%
TRA-12FM
In stock
+

Customization is available please Contact us here.
