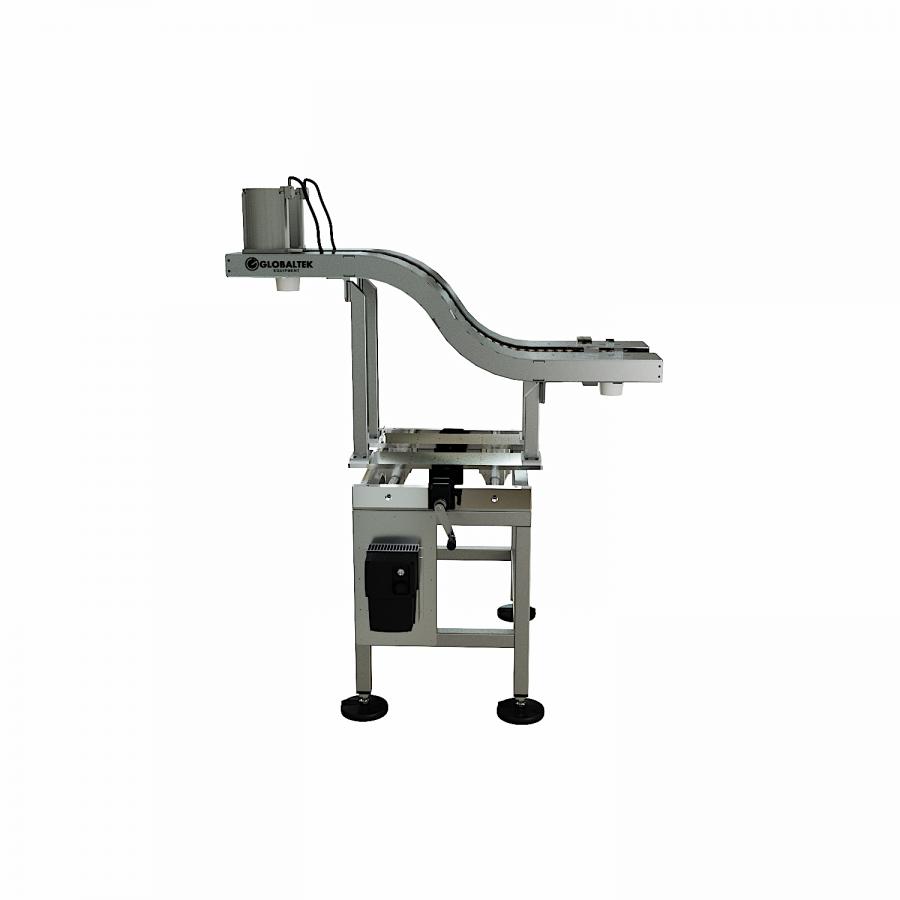

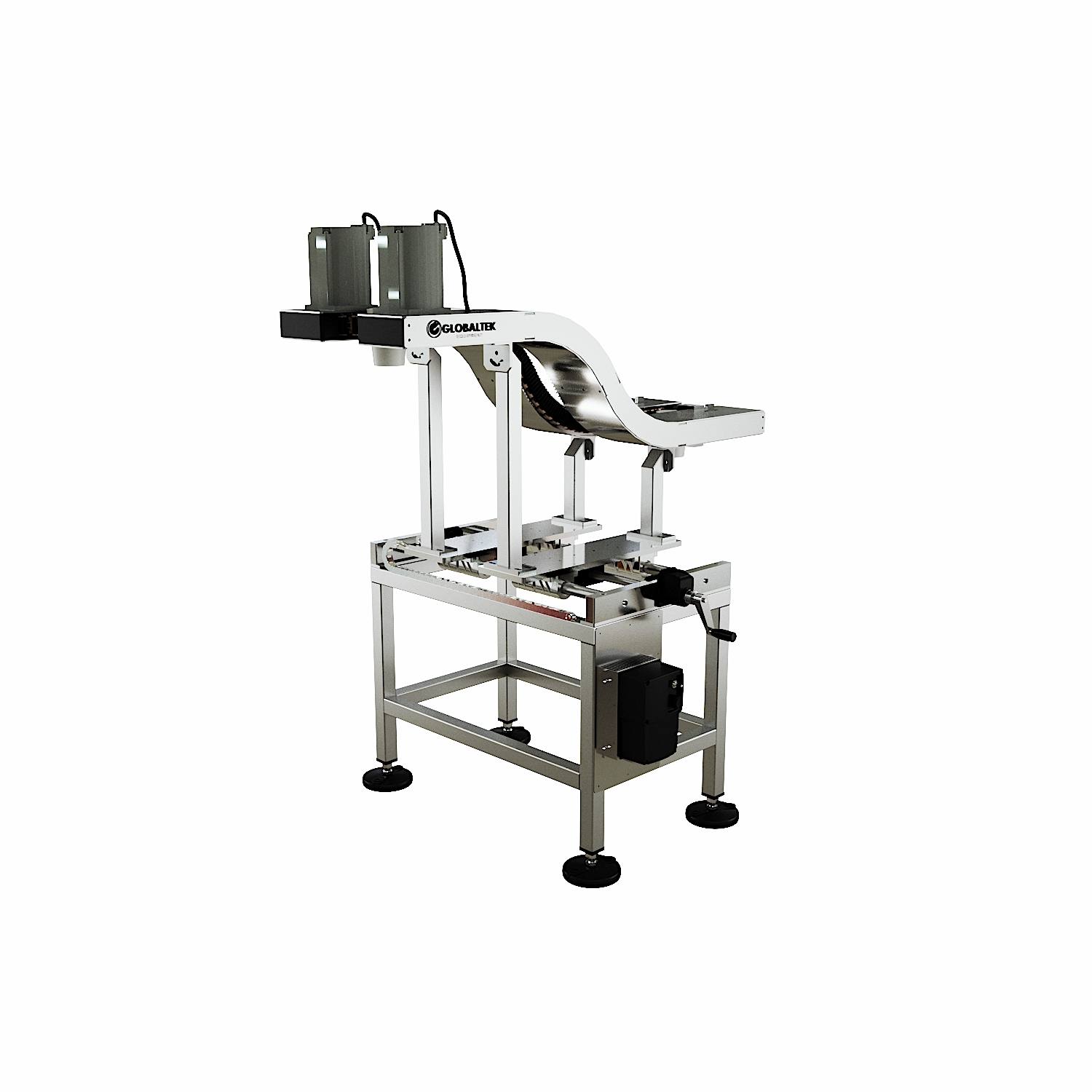

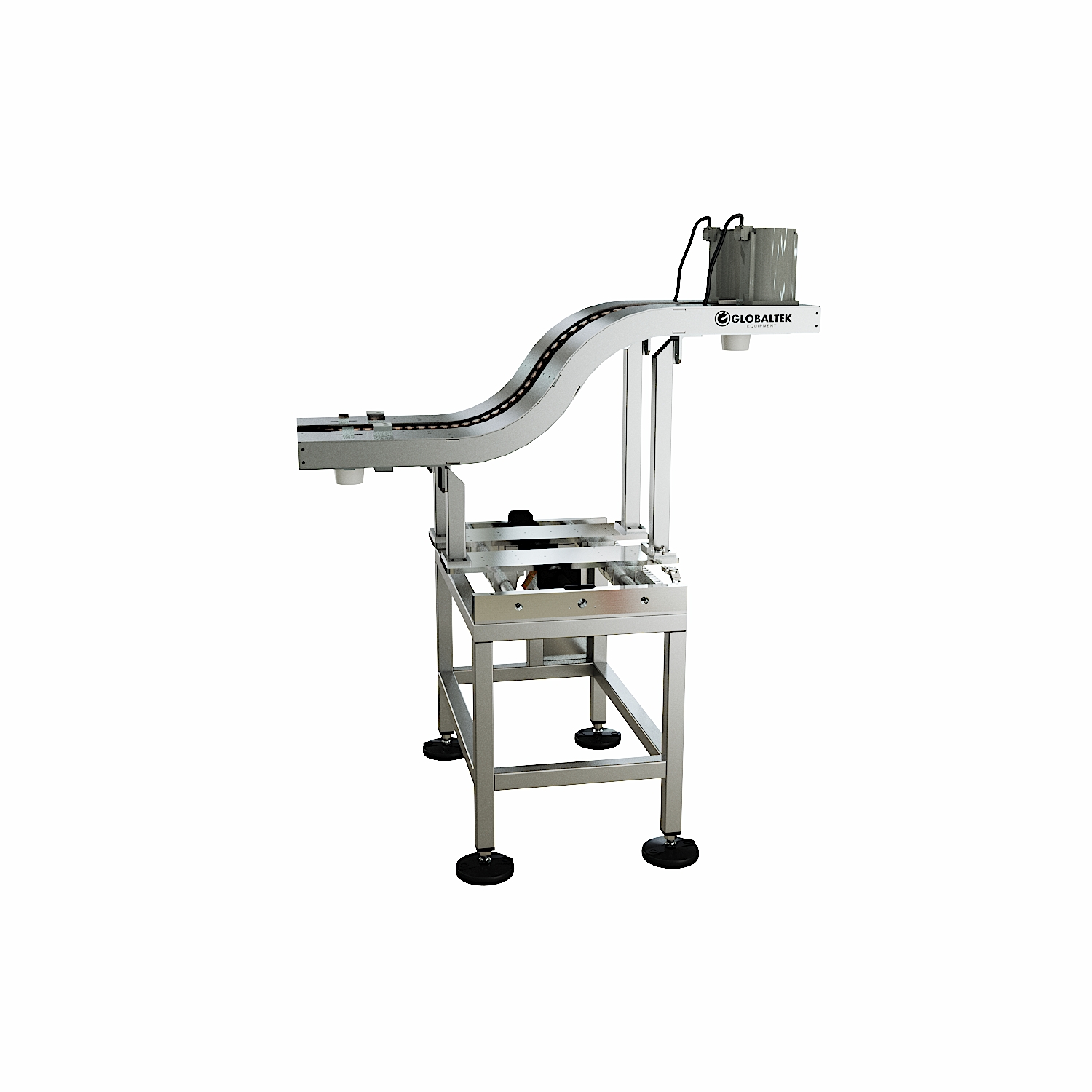

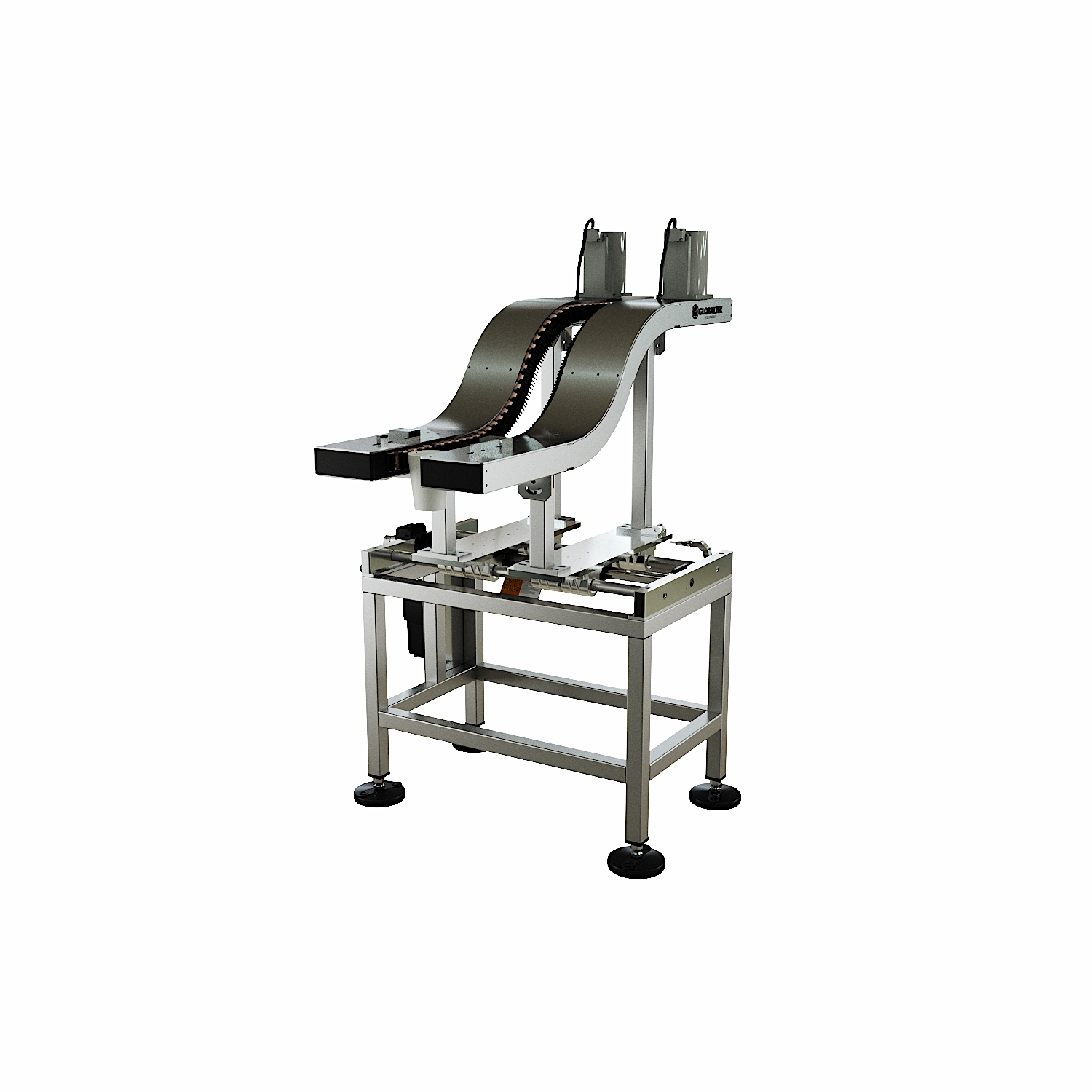

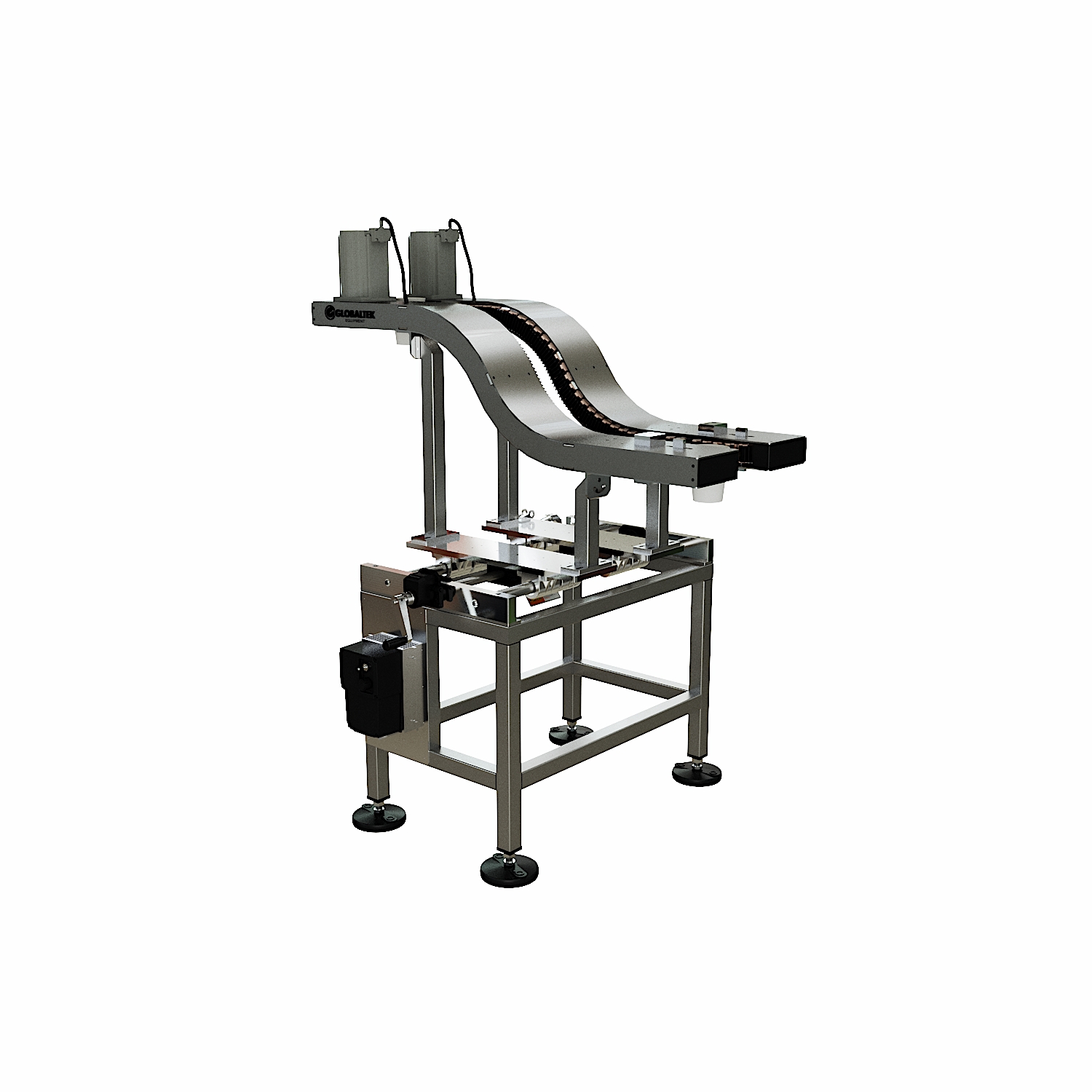

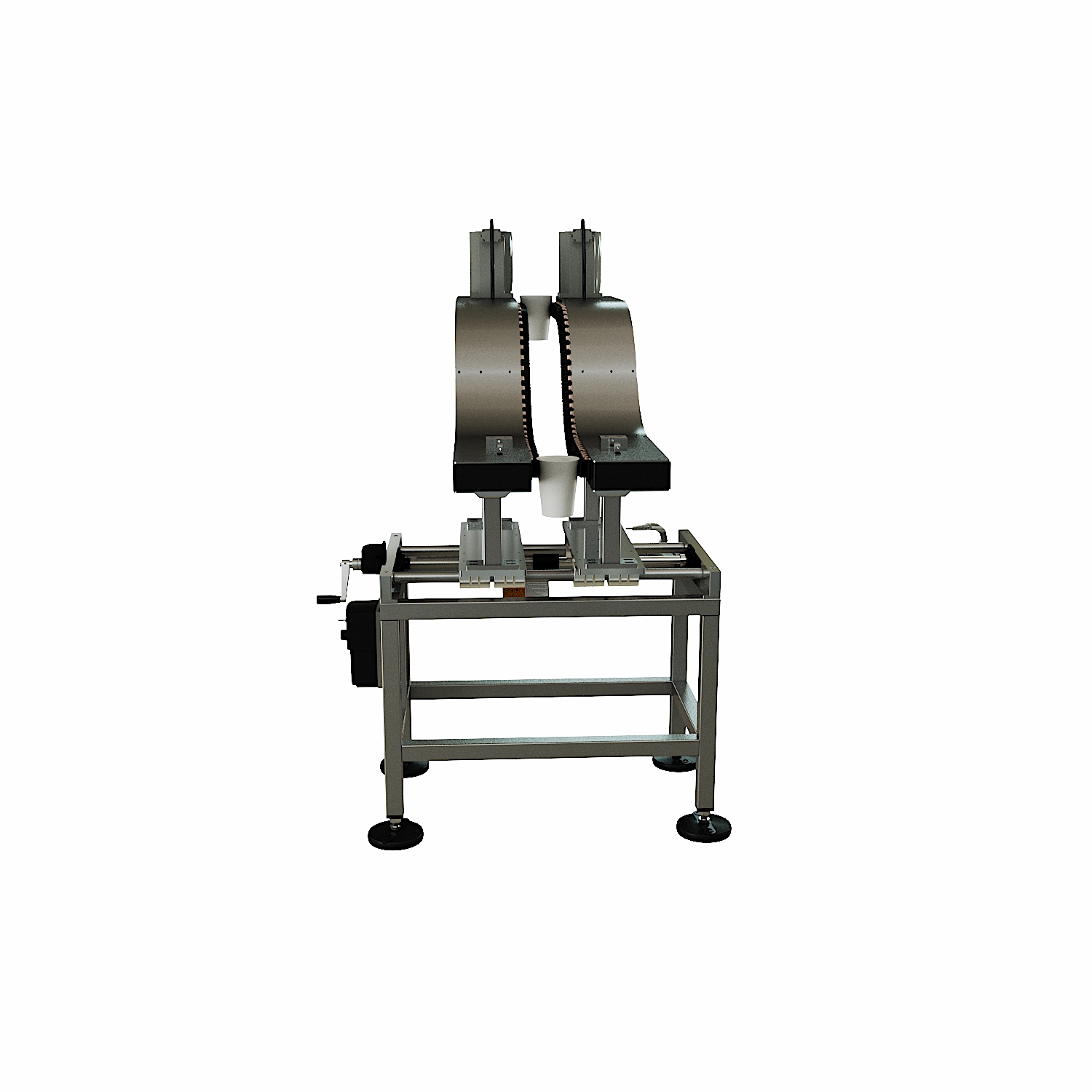

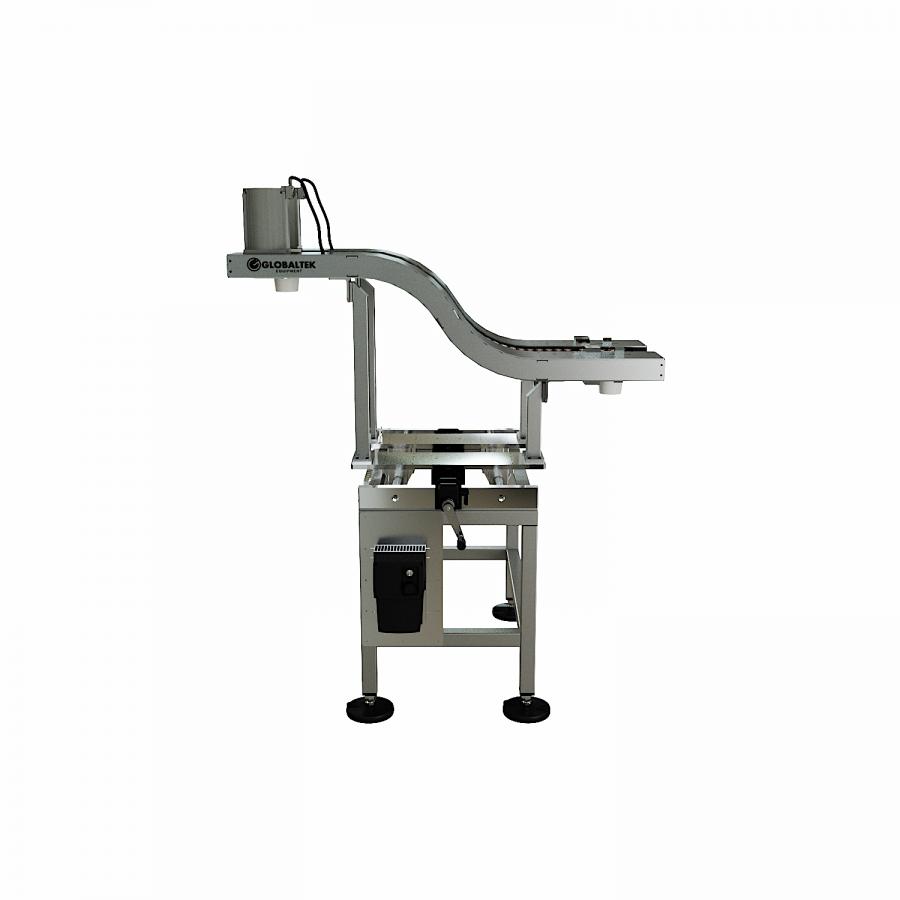

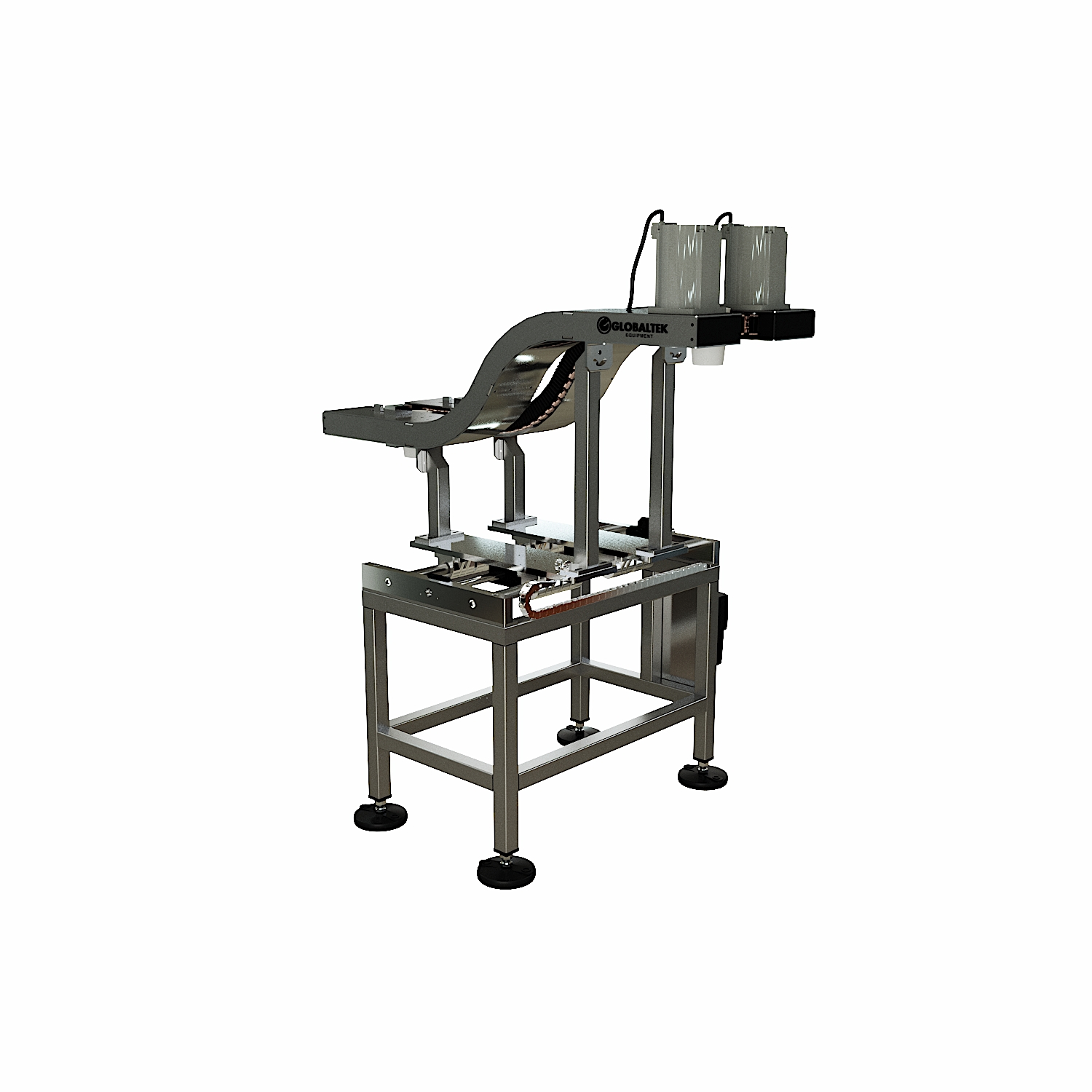

Gripper Elevator Conveyor System

Gripper elevator conveyor systems provide a reliable solution for moving individual products across a wide range of industries. Opposing side grippers securely hold products as they are elevated or lowered between different heights within your facility, then discharge them seamlessly onto downstream takeaway conveyors. Product size adjustments can be made easily using a simple hand crank, all within a compact footprint.

Available in “S” or “C” configurations, S-style conveyors are used for basic elevation changes while keeping the product in the same orientation, whereas C-style conveyors are used when an elevation change is required along with a 180-degree product flip. They accommodate products of various sizes and shapes, including boxes, totes, cans, plastic containers, and bottles.

Main Features:

• Made in the USA with 100% UL-certified components
• Stainless steel open frame or enclosed cabinet
• Adjustable leveling pads
• Operates at speeds up to 80 ft/min
• LS variable frequency drive: 115V single-phase input
• Saves floor space and conveyor length

Technical Data:

• Technical specifications vary based on the final machine configuration and design requirements.

Optional Features:

• Optional features vary based on the final machine configuration and design requirements.

Warranty:

• 12-month (limited warranty)
