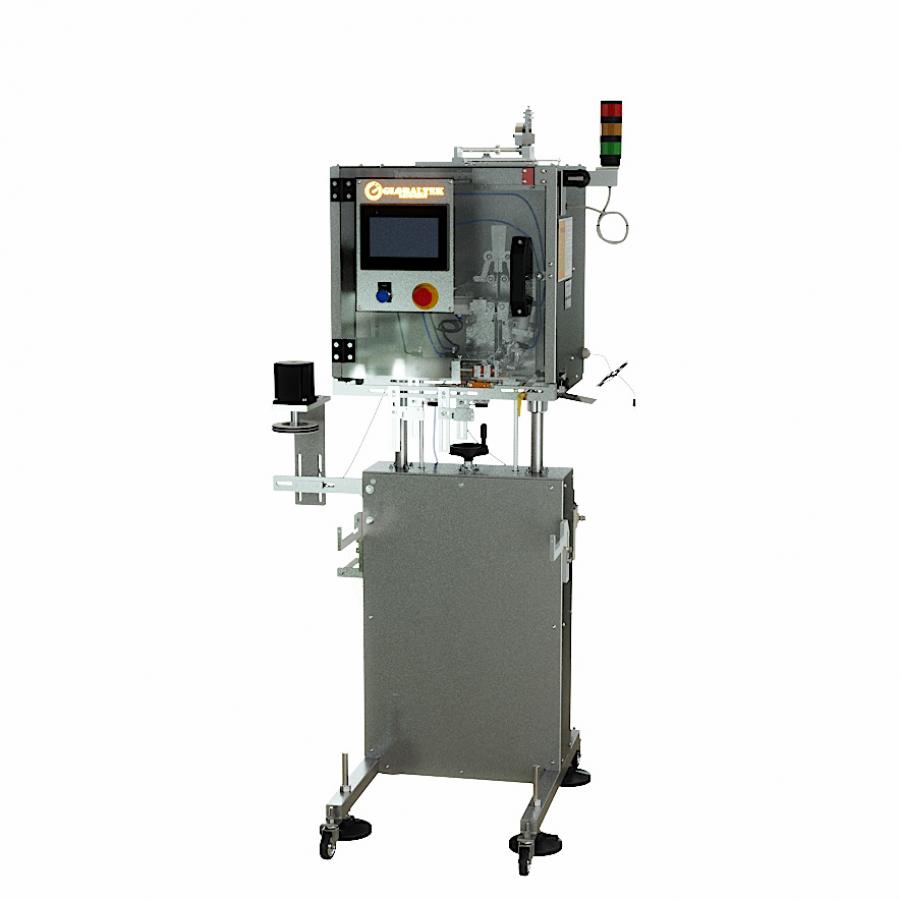

GLOBALTEK® Sleeve-It Tamper-Evident Band Applicator

The GLOBALTEK® Sleeve-It Tamper-Evident Band Applicator is a versatile and cost-effective solution for shrink labeling and shrink band applications. Designed for efficiency, it allows for quick and easy product setup, minimizing downtime and improving production line efficiency. With speeds of up to 120 bottles per minute, the Sleeve-It ensures consistent and reliable operation. This advanced applicator supports both neck banding and full-body sleeves, delivering high precision and dependability.

Additionally, the Sleeve-It offers an optional vertical perforation feature, allowing for easy-to-tear sleeves that enhance consumer convenience. Built with a heavy-duty stainless-steel frame, it is designed for long-term durability in demanding production environments.

Improve your packaging efficiency and product presentation with GLOBALTEK®’s Shrink Sleeve Applicator: Sleeve-It.

MAIN FEATURES:

• Heavy-duty stainless-steel frame for enhanced durability
• Stainless-steel contact parts for clean and hygienic operation
• Left to right configuration (right to left optional)
• C-frame design for effortless integration into existing bottling lines
• Stepper-driven band delivery for precise and efficient application
• Sensor for registration cutting to ensure accurate sleeve placement
• Low film sensor with stack light for real-time monitoring and alert system
• Stepper motor bottle indexing wheel for consistent product handling
• Touchscreen operator control with recipe management for quick setup
• Pneumatic cutting blade for precision cuts
• Hand crank for height adjustment to accommodate various bottle sizes

SPECIFICATIONS:

• Speed: Up to 120 bottles per minute (BPM)
• Film Lay Flat: 25mm to 122mm
• Cut Length: Up to 9 inches
• Cut Length Accuracy: ±1/32”
• Container Height: 1” to 9”
• Bottle Cap Diameter: 15mm to 70mm
• Roll Capacity: 17” OD on 5” I.D core
• Machine Overall Dimensions: 26” W x 32” D
• Machine Footprint: 19” W x 32” D
• Machine Height: 52” to 67”
• Electrical Requirements: 110 VAC, 60Hz, 5A
• Air Requirements: 100 psi, 0.5 ACFM
• Machine Weight: 150 lbs

Optional Features

• Right to left configuration
• Anti-static bar
• Vertical Perforator for easy-to-tear sleeves
• Sleeve support for tamper-evident neck banding on straight side containers
• Motorized height adjustment
• Heat tunnel addition
• Conveyor addition
• Puck systems
• Feed screw
• Powered label seating brushes

In-Stock with Pre-Shipment Requirements

While this machine is currently in stock, shipment is subject to completion of required pre-shipment activities, including sample evaluation, machine configuration to your specifications, Factory Acceptance Testing (FAT), and setup. These activities generally require approximately 15–20 days from the date we receive representative samples. After these steps are concluded, the machine will be crated and prepared for shipment.
