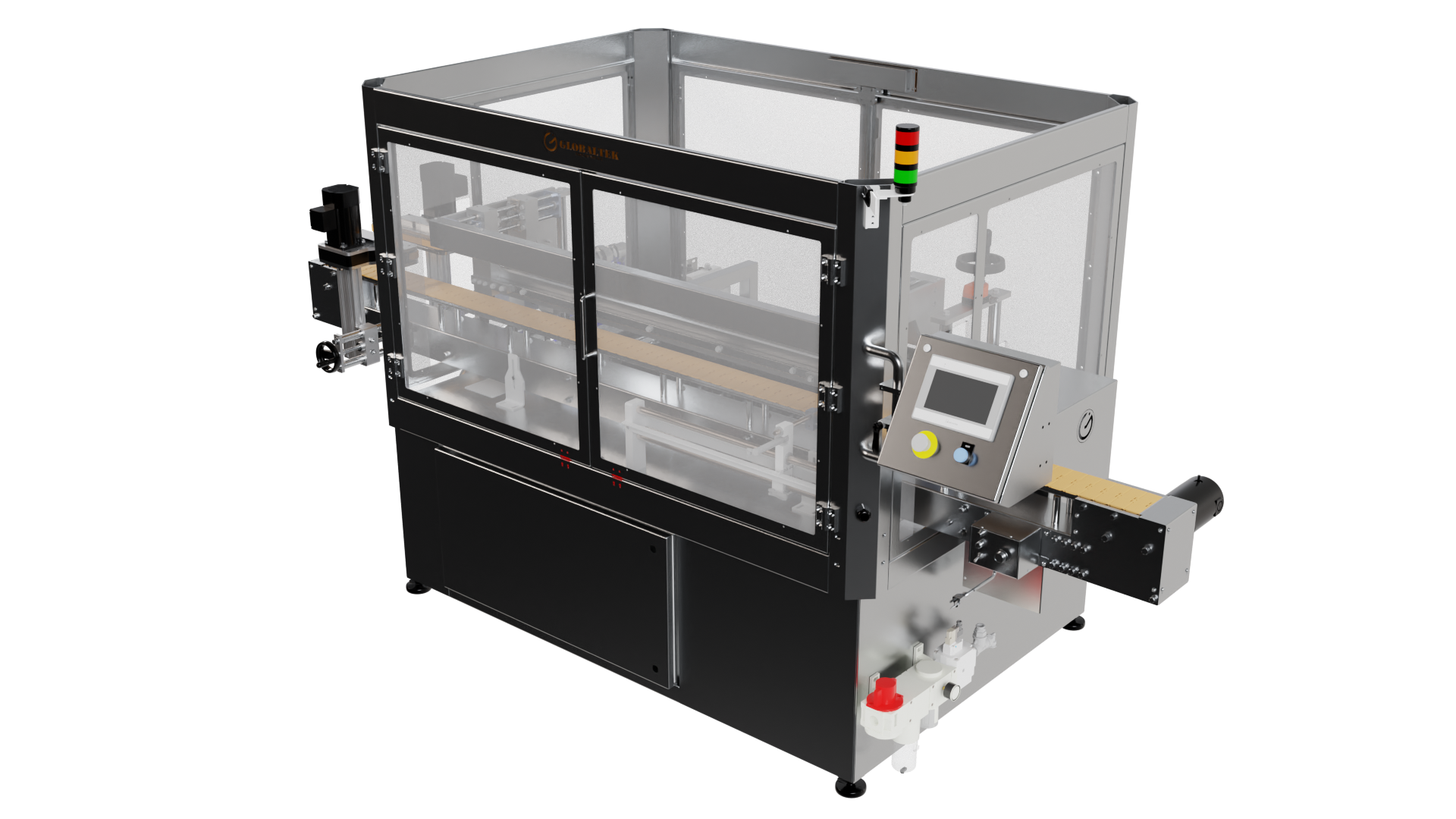

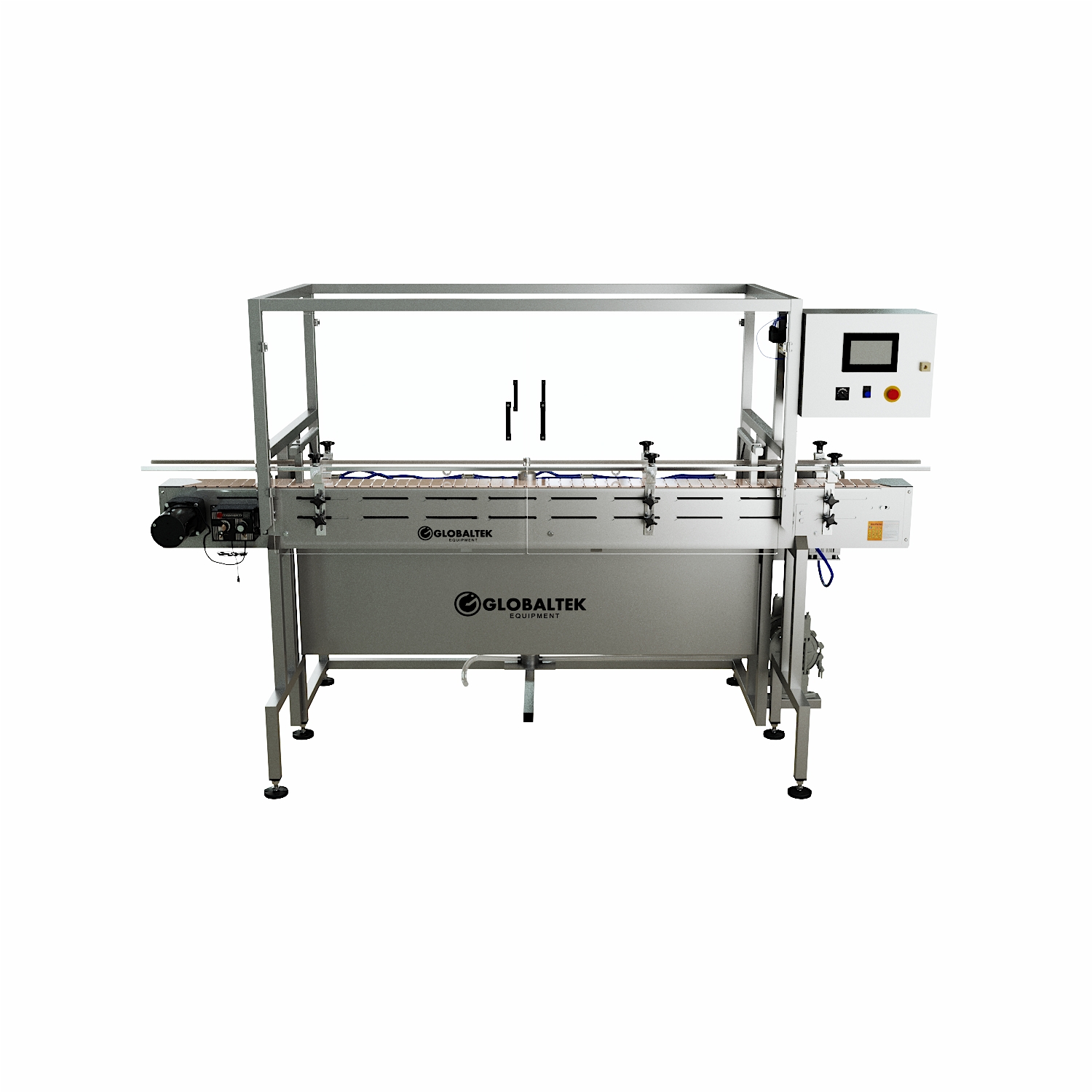

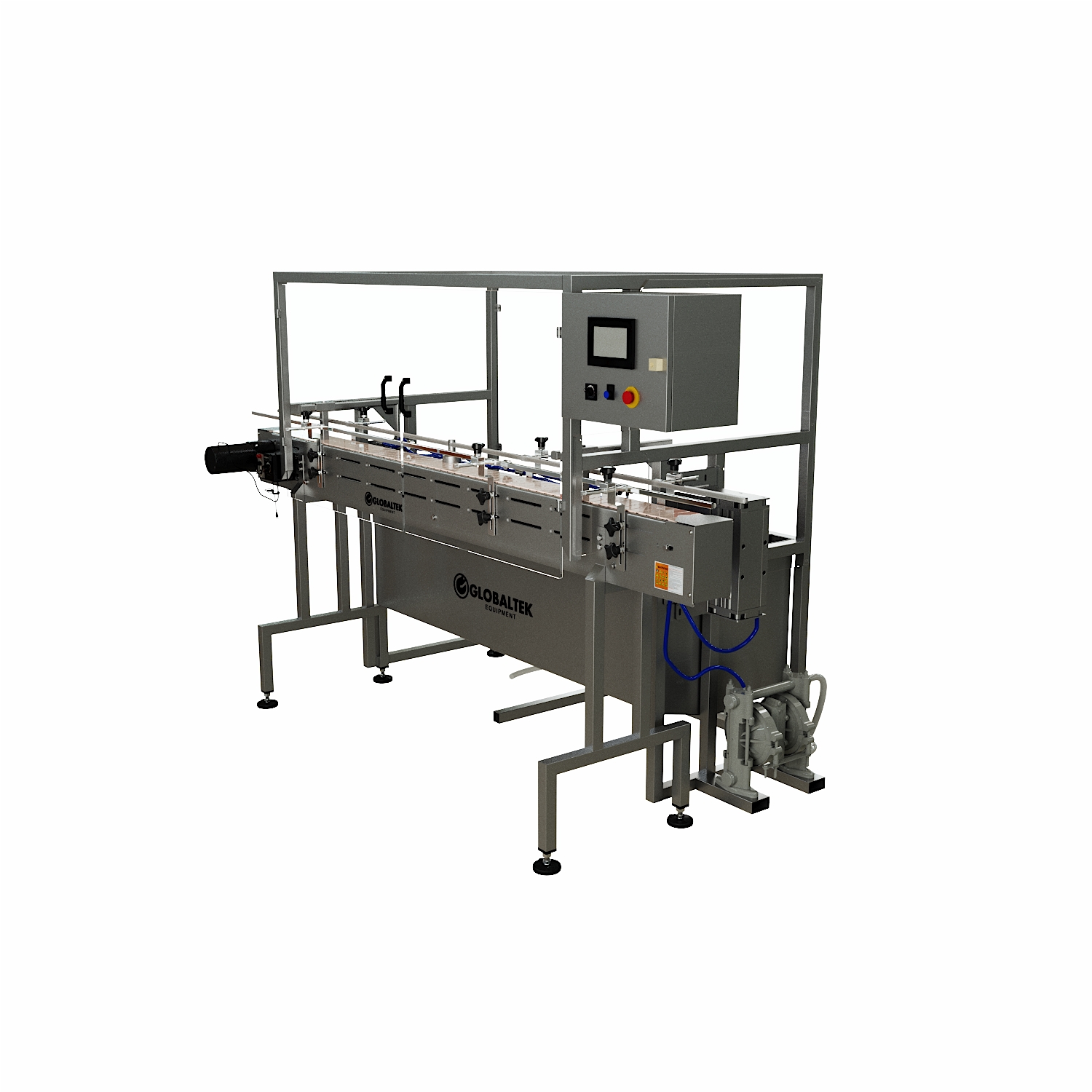

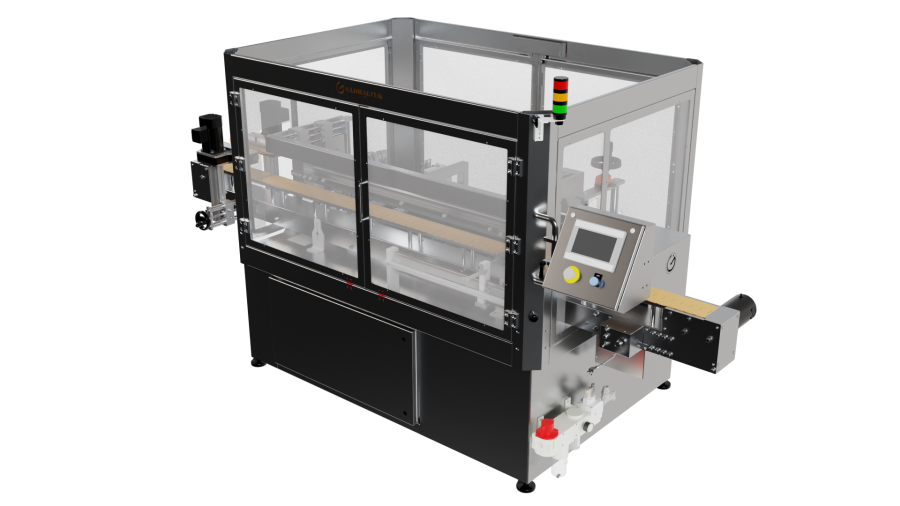

GlobalTek® Rinse-it Automatic In-Line Bottle Rinser

The GlobalTek® Rinser System is designed to remove dust, debris, and loose particulates from empty bottles prior to filling. The system supports Air Rinse, Water Rinse, Hybrid (Air + Water), and CIP Purge configurations to accommodate different container types and sanitation requirements.

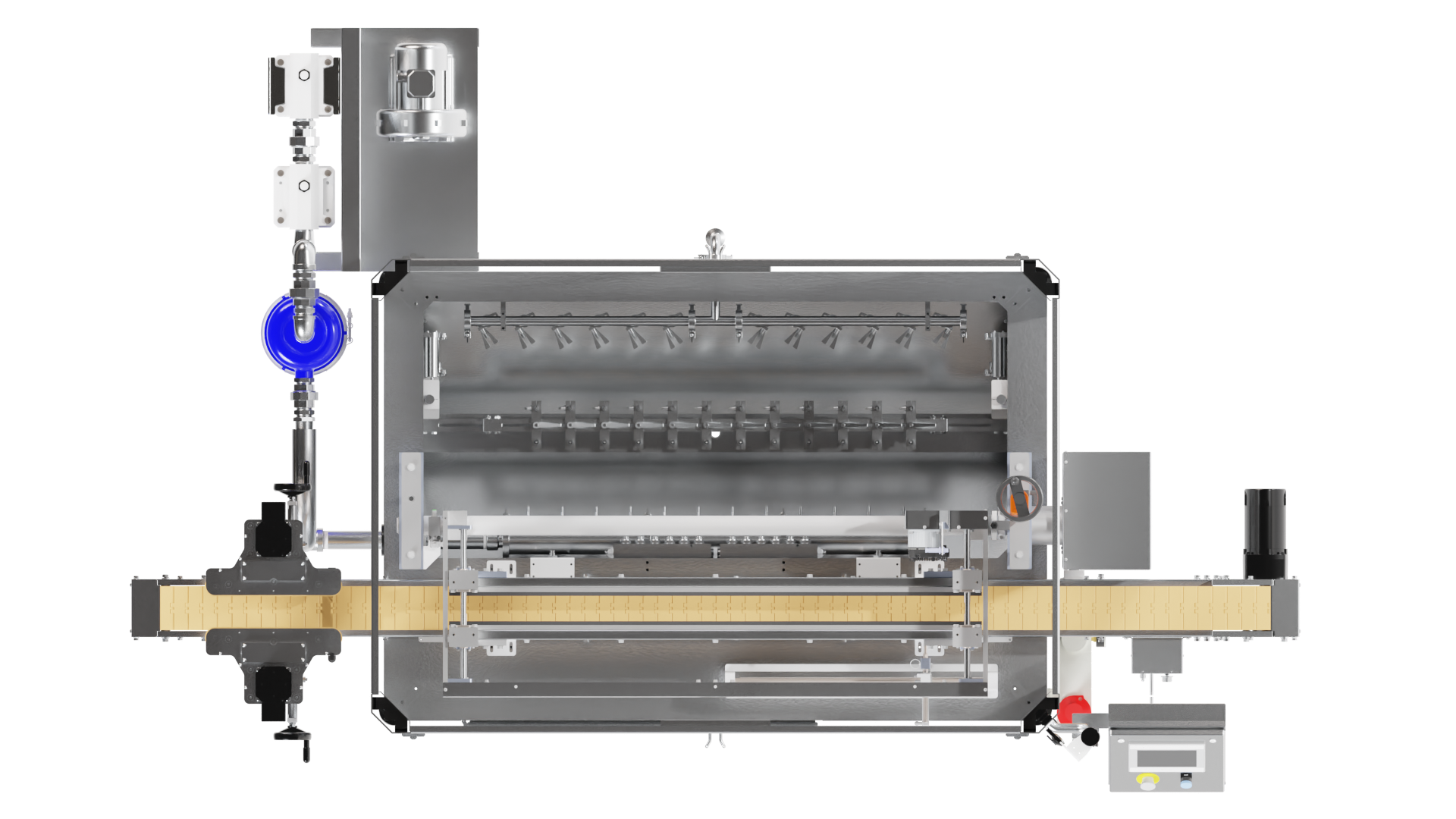

The GlobalTek® Rinser can operate as a stand-alone unit or be integrated into an automated packaging line. Bottles enter through the infeed conveyor, are secured by gripper arms, inverted 180 degrees, and rinsed with pressurized air and/or water through adjustable nozzle banks. Rinse media is collected through a drainage tank, and bottles are returned upright before discharge onto the outfeed conveyor.

Cycle timing, pressure, and mode selection are controlled pneumatically or through PLC recipe settings, depending on system configuration.

Main Features:

• Compressed Air: 80 psi (6 bar), 43 SCFM, ISO 8573-1 Class 4.4.2 quality

• Water Supply: 20 – 40 psi (1.4 – 2.8 bar), 0.5 – 1.0 GPM, potable or filtered water

• Power: 110 VAC / 60 Hz for valves or sensors

• Drain: Ø 1 in NPT minimum, sloped to floor drain

• Bottle Diameter: 1 – 4 in (25 – 100 mm), adjustable guides

• Bottle Height: 3 – 12 in (75 – 300 mm), adjustable grippers
• Throughput: Up to 120 bpm, depends on rinse time / mode

• Invert Angle: 180° ± 2°, adjustable stop limits

• Cycle Time: 0.5 – 1.2 s typical, varies with bottle set

• Repeatability: ± 0.5 mm at grippers, verified under nominal load

How the GlobalTek® Rinse-it Bottle Rinser Works:

Empty bottles move from the infeed conveyor into adjustable grippers. The machine turns each bottle upside down and directs pressurized air, water, or both through adjustable nozzles to remove loose particles before filling. The rinse media is collected through a drainage tank. The bottles then turn upright and move onto the outfeed conveyor for the next step in the packaging line.

In-Stock with Pre-Shipment Requirements While this machine is currently in stock, shipment is subject to completion of required pre-shipment activities, including sample evaluation, machine configuration to your specifications, Factory Acceptance Testing (FAT), and setup. These activities generally require approximately 10–12 weeks from the date we receive representative samples. After these steps are concluded, the machine will be crated and prepared for shipment.
