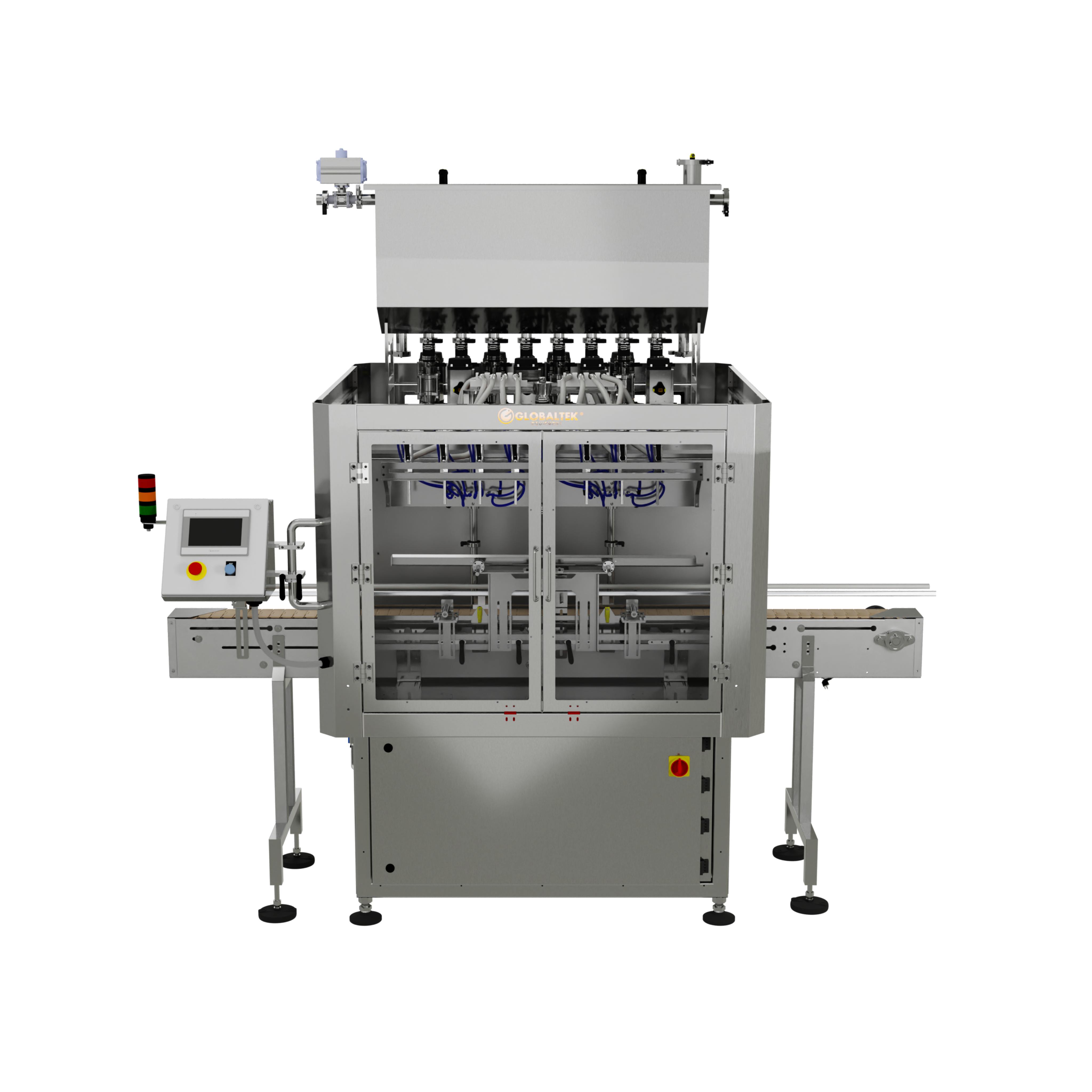

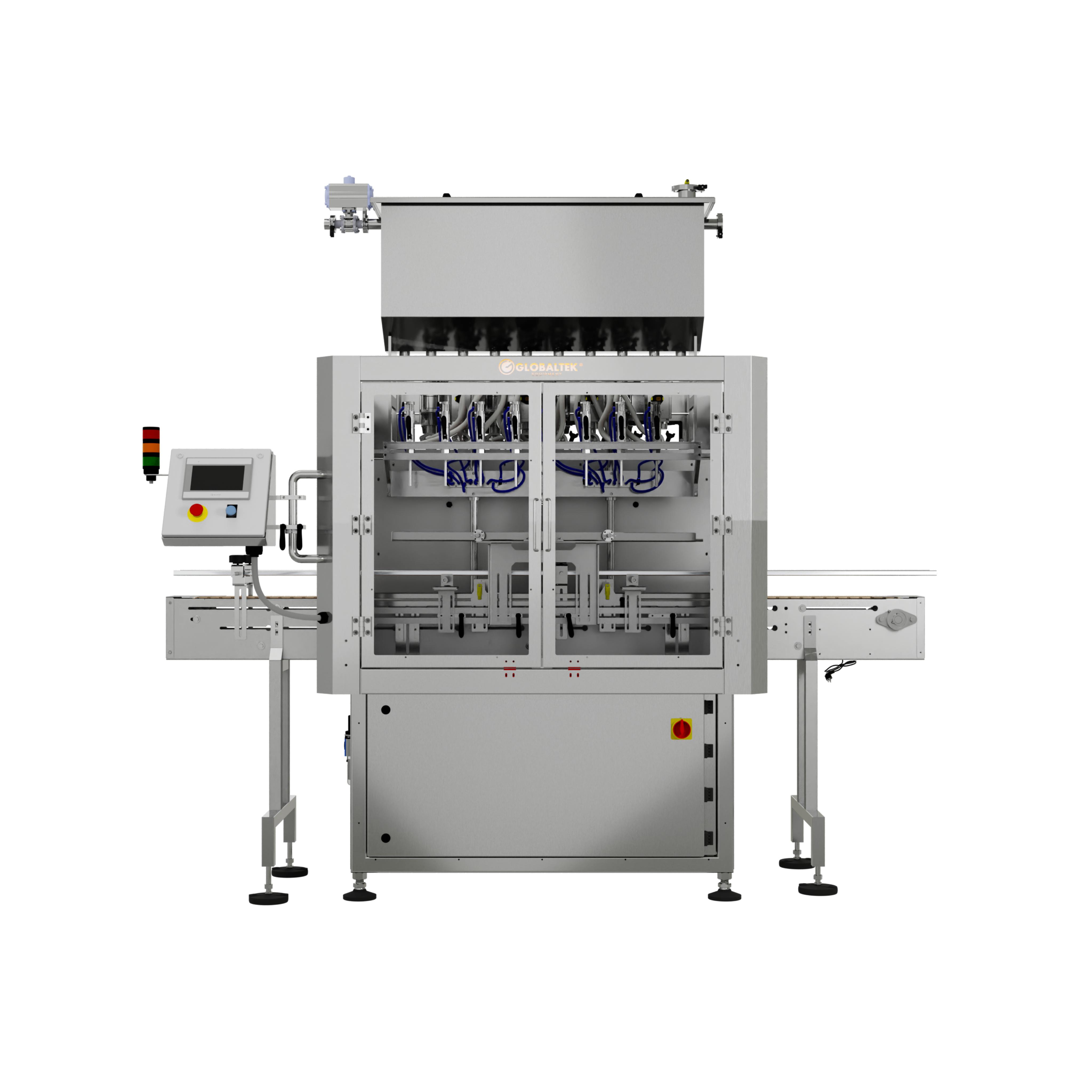

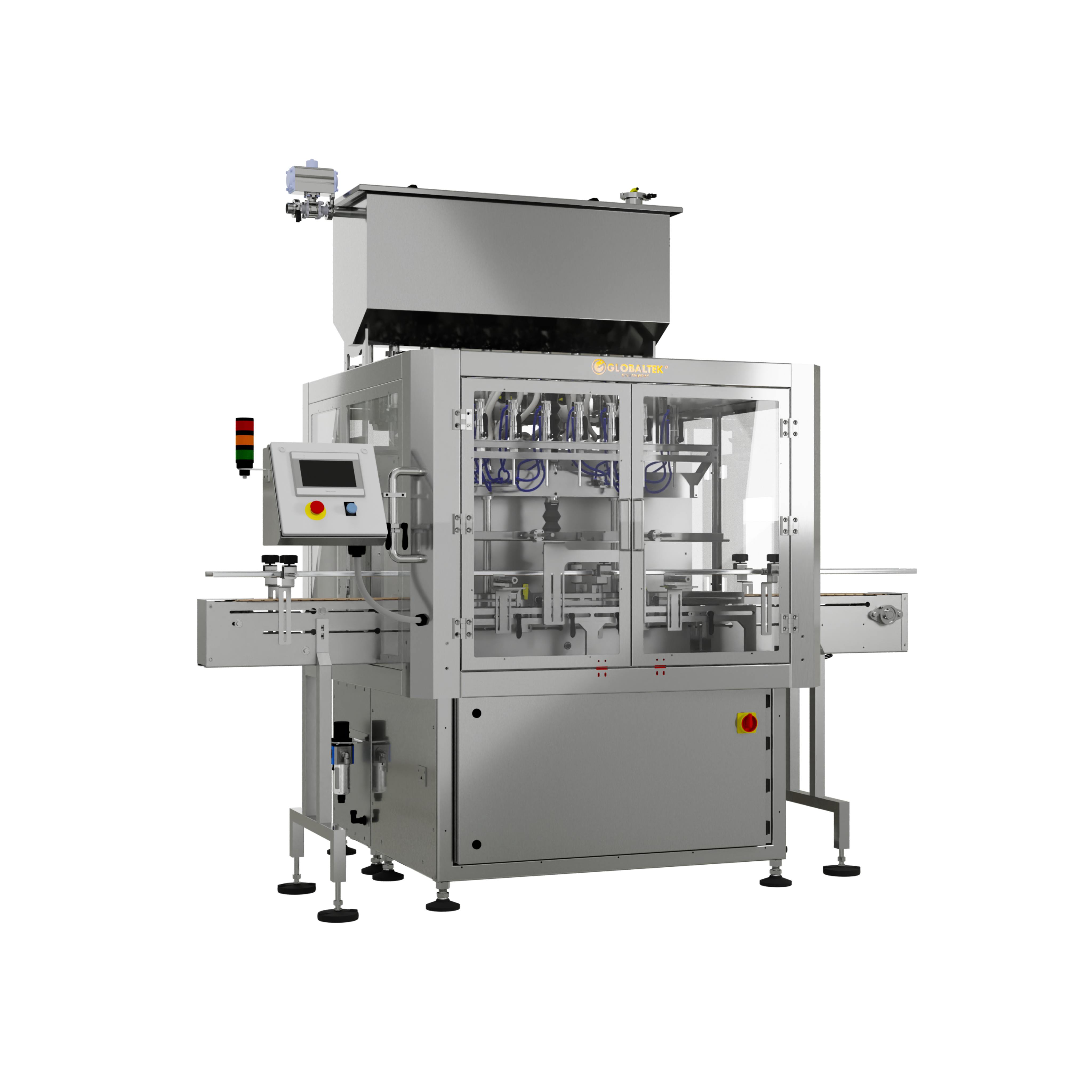

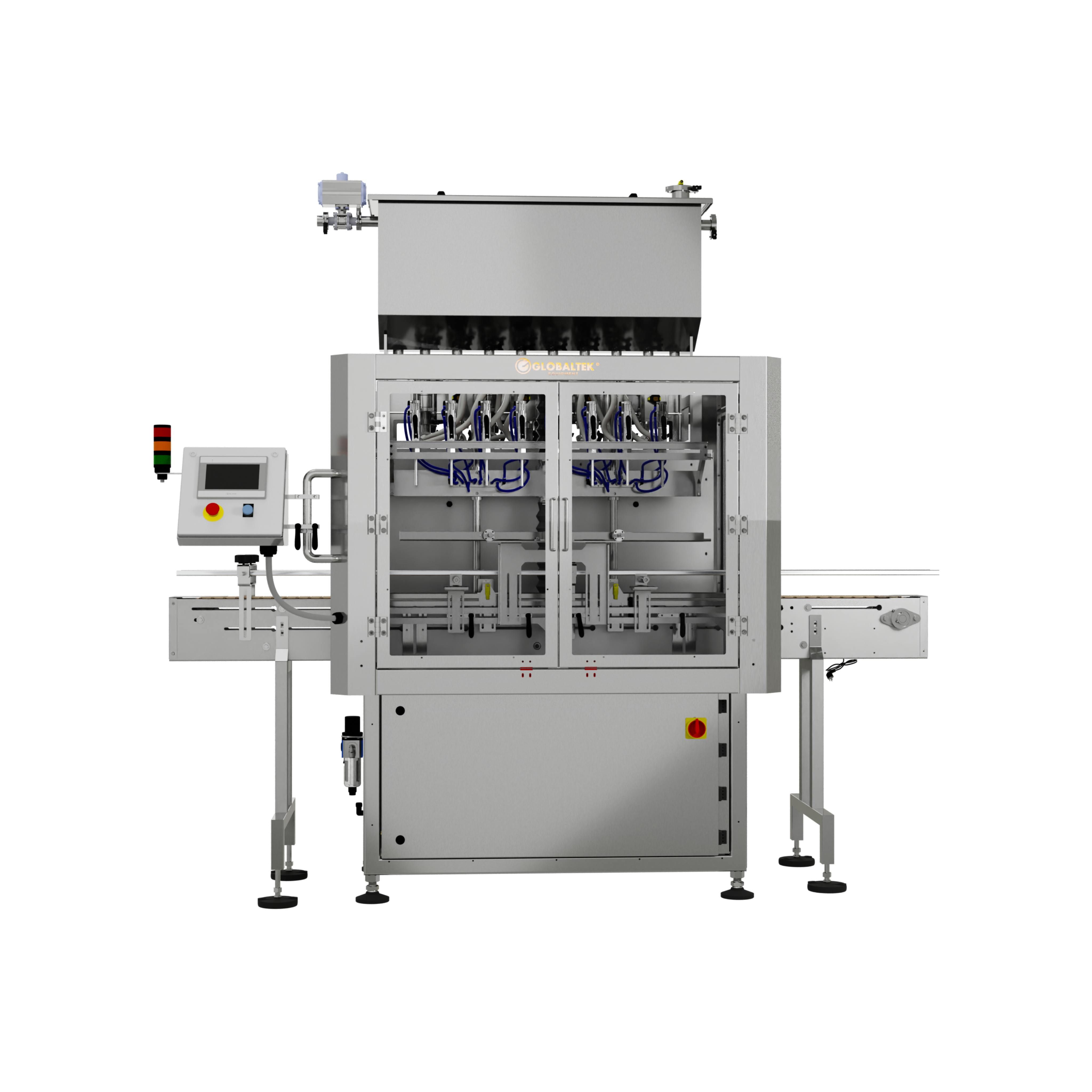

GlobalTek® Automatic Servo Piston Filler

The GlobalTek® Volumetric Servo-Driven Piston Filling System is available in configurations ranging from 4 to 8 filling heads. (2-128 oz. cylinders) It features a precise servo motor/drive system to control the filling pistons, while the nozzle dive system is also servo-controlled, ensuring enhanced stability and precise positioning. This filler is especially suitable for handling thicker (viscous) and foamy products.

Main Features

• Made in USA
• 304 Heavy duty stainless steel frame
• Wetted parts are 316 stainless steel
• Omron PLC
• Touchscreen Operator Control with recipe management
• All filling movements are servo controlled
• No drip nozzles
• Motorized nozzles height adjustment
• The adjustable filling speed allows for a slow start, acceleration to a faster pace, and a gradual slowdown to finish, helping prevent foam buildup and spillage
• Capable of delivering multiple doses per container for larger containers
• Volume adjustments are made easy via the touchscreen
• Each piston can be adjusted separately for detailed fine-tuning
• Stainless steel quick-connect fittings for easy cleaning
• Capable of dosing fragile particulates up to ¾ inch in size.
• Bottle indexing gates
• Fast and easy format changeover
• Full Protective Guarding for Increased Safety
• Various sizes of pistons and fill nozzles are available for diverse filling requirements
• Hopper product level control

Optional Features:

• Agitated, jacketed, and custom-built hoppers
• Heat packages
• Screw conveyor for container positioning
• Neck guides for containers with small opening
• Conveyors
• Drip tray

Technical Data

• Omron PLC control with 7” touch screen HMI (up to 100 recipe filling cycle parameters for recall)
• Expandable up to 16 nozzles to increase speed
• No bottle / No fill sensor
• Batch bottle counter records number of filling cycles completed
• Sensor for downstream back pressure
• Includes centrifugal pump: 96 gallon per minute, 1 HP / 3 ph, 316 stainless steel construction
• Linear guide with linear bearings for easy nozzle mount movement
• Nozzles move up and down with pneumatic-driven 4-inch stroke cylinder
• Hand wheel bottle height adjustment (1 to 16 inches high)
• Air filter-regulator included

Electric and Pneumatic Requirements

• 220 Volts, 60 Hz, 10 Amps
• 5 CFM @ 80 p.s.i.

In-Stock with Pre-Shipment Requirements While this machine is currently in stock, shipment is subject to completion of required pre-shipment activities, including sample evaluation, machine configuration to your specifications, Factory Acceptance Testing (FAT), and setup. These activities generally require approximately 10–12 weeks from the date we receive representative samples. After these steps are concluded, the machine will be crated and prepared for shipment.

How the GlobalTek® Automatic Servo Piston Filler Works

This volumetric filling machine uses servo-controlled pistons to dispense measured volumes into containers. Its servo-controlled nozzle dive system positions the nozzles during filling. The filling speed can start slowly, increase, then slow again near the end of the fill to help limit foam buildup and spillage.

Filling Capabilities

The system is available with 4 to 8 filling heads and 2–128 oz. cylinders. It is suited to viscous and foamy products and can deliver multiple doses into larger containers. Operators can adjust each piston individually and save filling settings through the touchscreen recipe controls. No-drip nozzles, bottle indexing gates, and quick-connect fittings support clean fills and easier changeovers.

Available Configurations

Depending on the application, options include different piston sizes and fill nozzles, agitated or jacketed hoppers, heat packages, container-positioning screw conveyors, neck guides, conveyors, and a drip tray. Contact GlobalTek Equipment for a configuration and price quote based on your product and containers.
