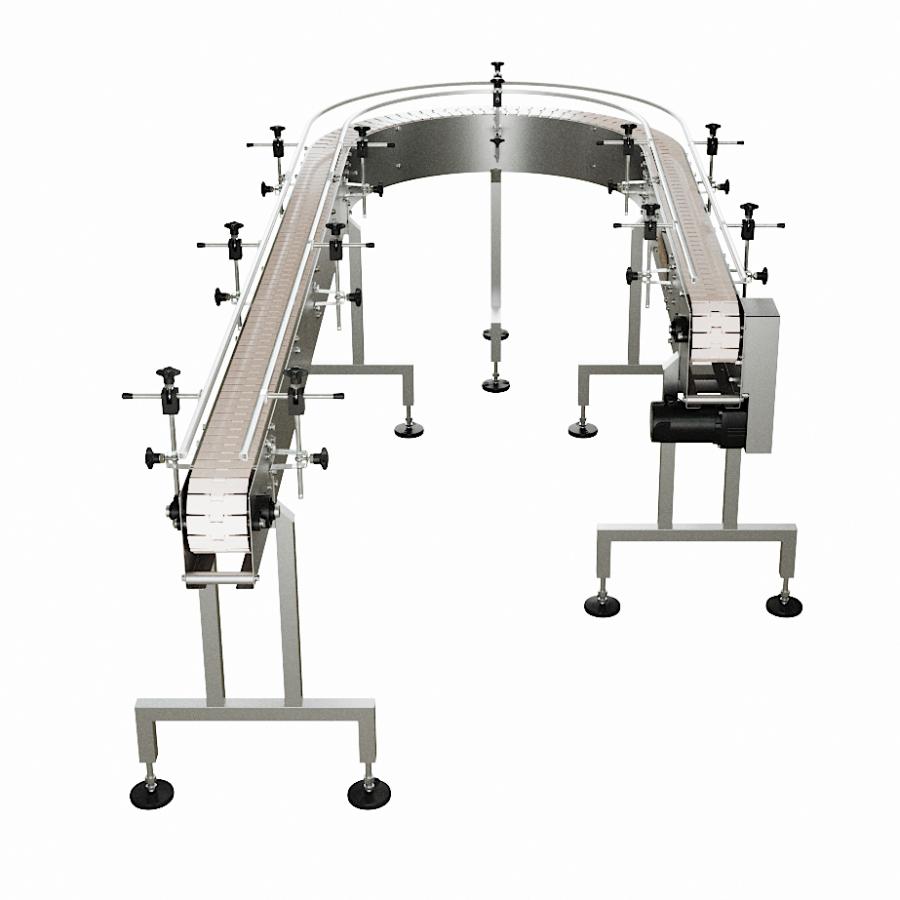

GLOBALTEK Stainless Steel 180 Degrees U-Shape Conveyor Line System - 4.5 Inches Width

The GLOBALTEK Stainless Steel 90 Degrees L-Shape and 180 Degrees U-Shaped Conveyor Line System features a Made in USA Bodine motor and variable speed control. This conveyor is ideal to maximize space in a production line and adjust to corners. They are used for perpendicular product transfers without disturbing the flow and orientation.



MAIN FEATURES

  • MADE IN USA WITH 100% UL CERTIFIED COMPONENTS
  • STAINLESS STEEL FRAME
  • UP TO 200 FT/MIN
  • DUAL POST STAINLESS STEEL WELDED BASE (IDEAL FOR LIGHTER AND HEAVIER LOADS)
  • ADJUSTABLE LEVELING PADS
  • TRANSFER END PLATES FOR CONTAINER TRANSITIONING
  • TOOLLESS ADJUSTABLE RAIL BRACKETS
  • LOW FRICTION ACETAL (DELRIN) TAB BELT
  • BELT DRIVEN BOTTOM MOUNT MOTOR WITH STAINLESS STEEL COVER
  • UHMW LUBRICATED CHAIN TRACK SYSTEM
  • BODINE DC DRIVE



TECHNICAL DATA

  • STANDARD 24” RADIUS CURVE
  • CURVE AVAILABLE RIGHT AND LEFT TURN
  • STRAIGHT SECTIONS LENGTH MADE TO ORDER
  • CONVEYOR STANDARD WIDTH: 4.5”
  • BODINE DC MOTOR, 3/8 HP, 83 RPM, 248 LB/IN
  • 115 VOLTS / 1 PH / 60 HZ
  • FLOOR TO BELT HEIGHT 35” TO 40”
  • ADJUSTABLE GUIDE RAIL OPENING: 0” TO 5/8” WIDER THAN BELT
  • ADJUSTABLE GUIDE RAIL HEIGHT: 0”-5”



OPTIONAL FEATURES

  • HAND PACK STATION
  • DUAL GUIDE RAIL
  • 4” STAINLESS STEEL GUIDE RAIL
  • STAINLESS STEEL CHAIN, MATTOP BELT, FLEXIBLE BELT
  • SIDE TRANSFER PLATE CONVEYOR TO CONVEYOR
  • WASH DOWN MOTOR AND SPEED CONTROL
  • X-PROOF MOTOR AND SPEED CONTROL
  • LOCKING CASTERS



WARRANTY

  • 12 MONTHS (LIMITED WARRANTY)



No posts found

Write a review
$400.00
In stock
+
10 days
$4,750.00
Should be equal or less than the selected In Feed Length
Should be equal or less than the selected Out Feed Length
Should be same length as the entire conveyor
Should be same length as the entire conveyor
CON-180L-45
In stock
+

Customization is available. Contact us here.
