Frequently Asked Questions

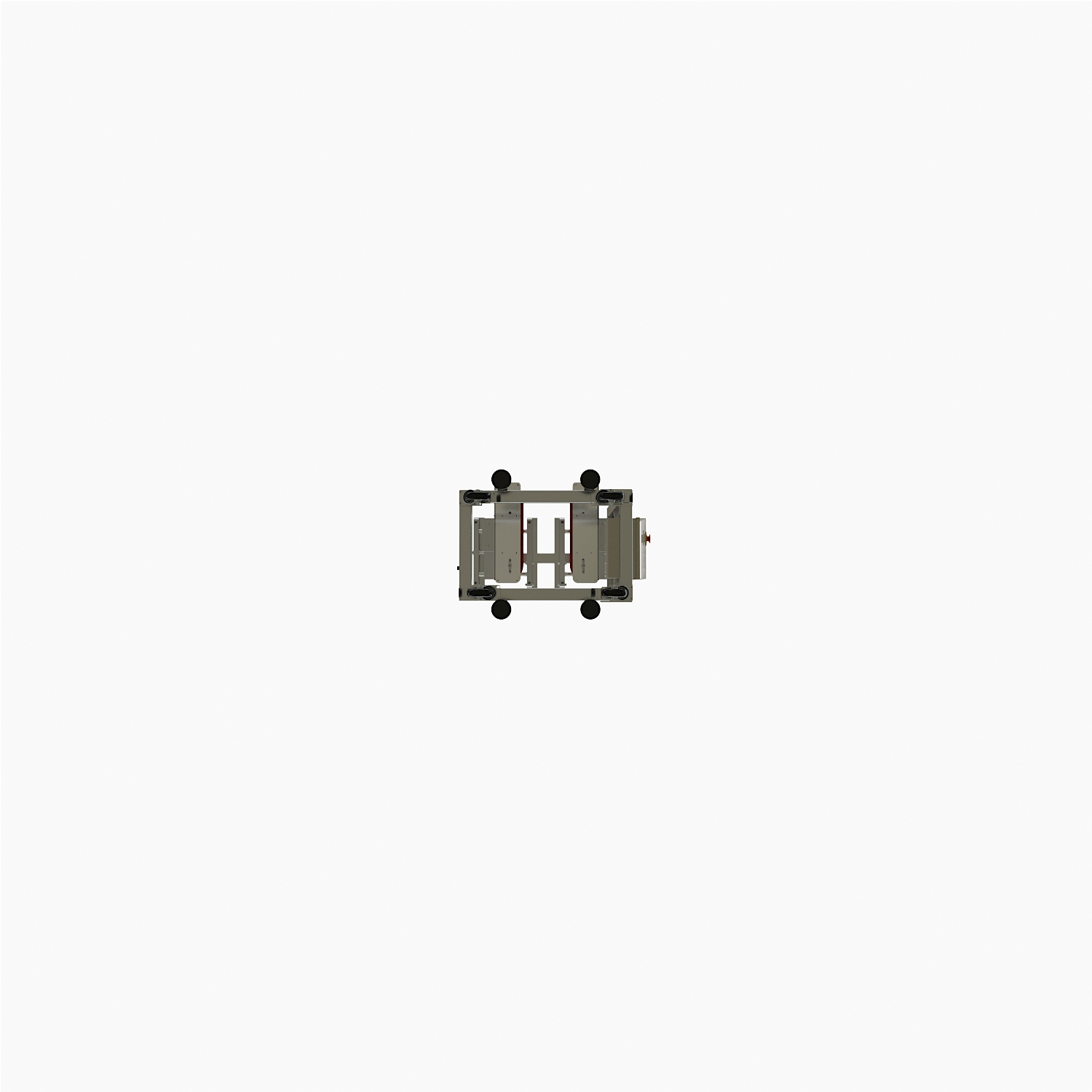

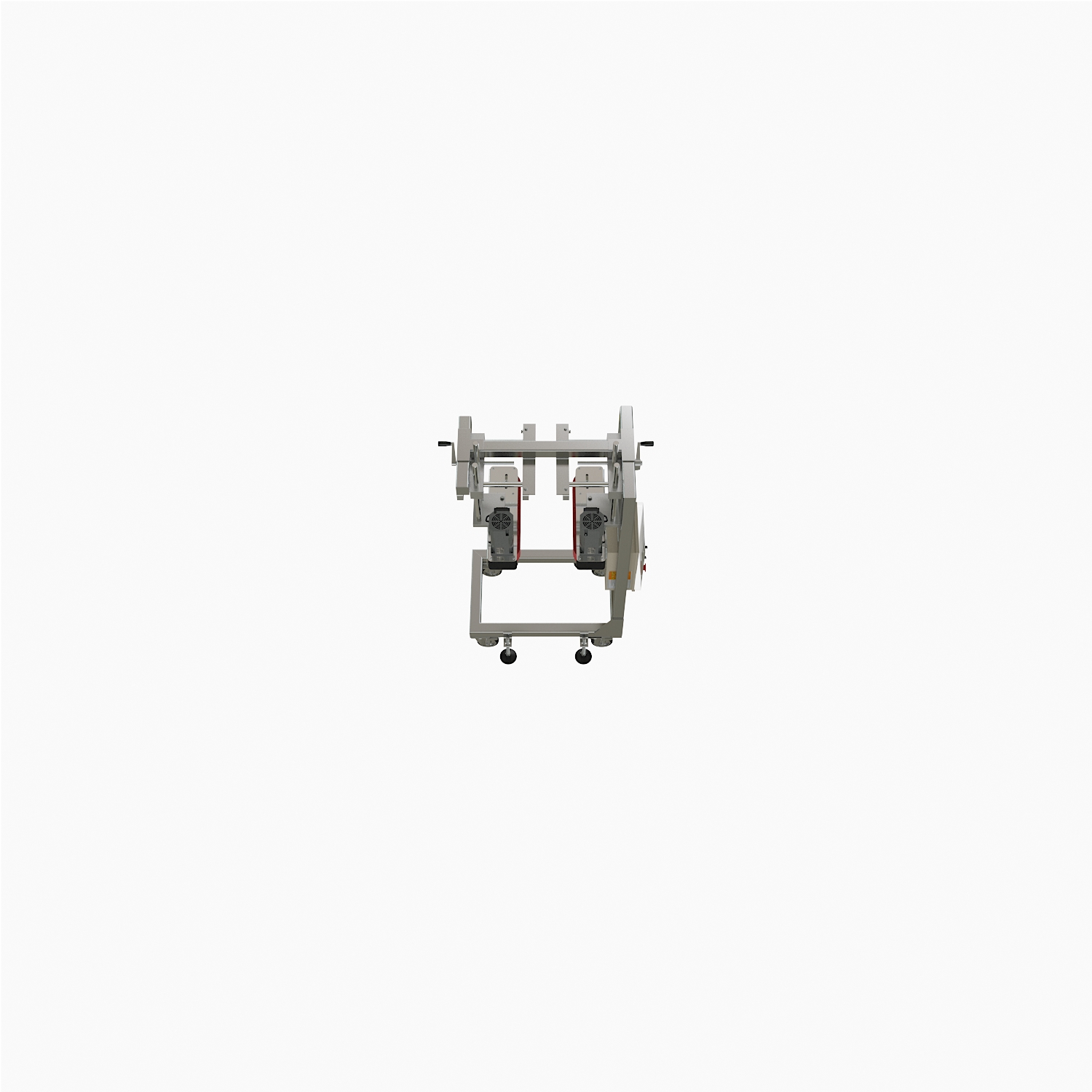

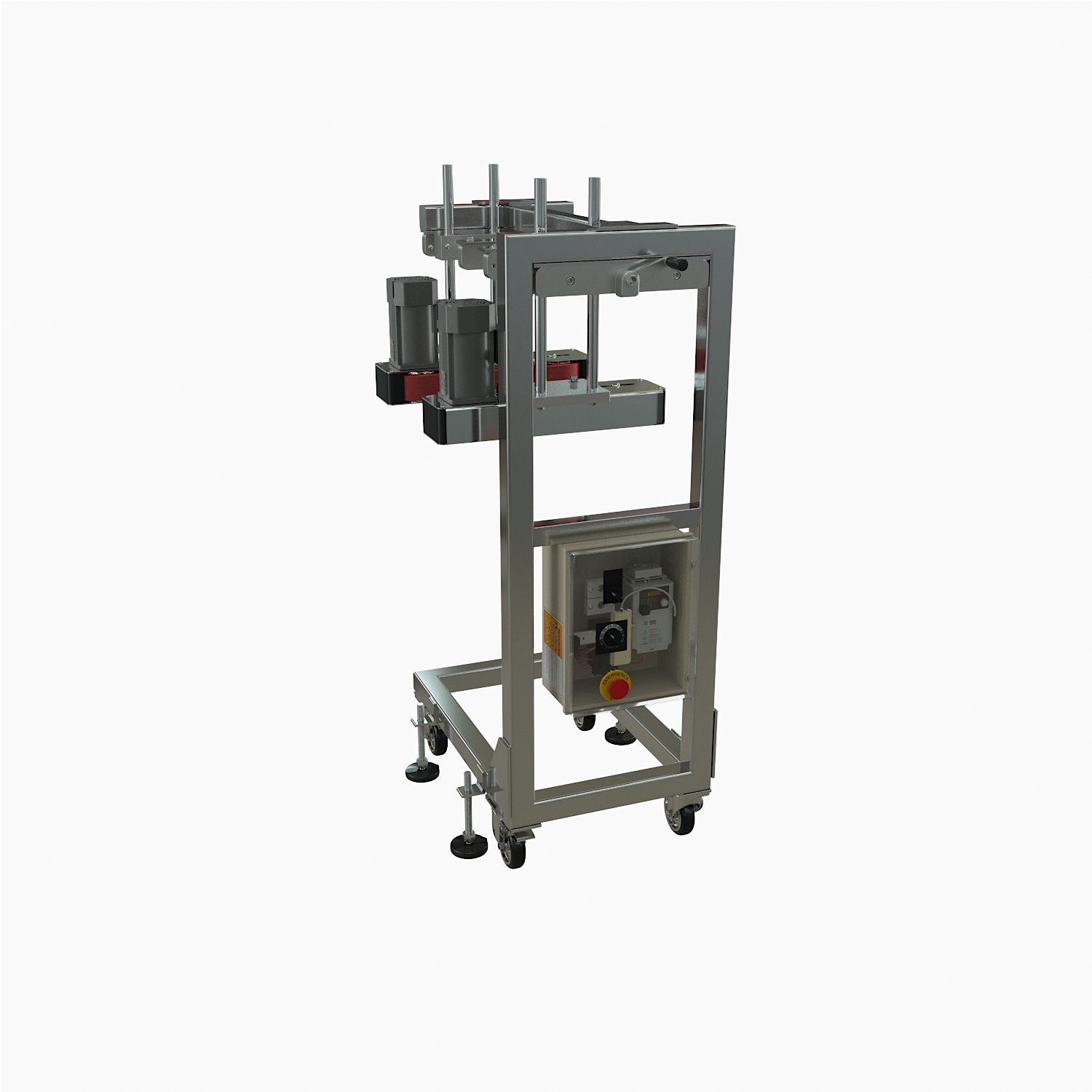

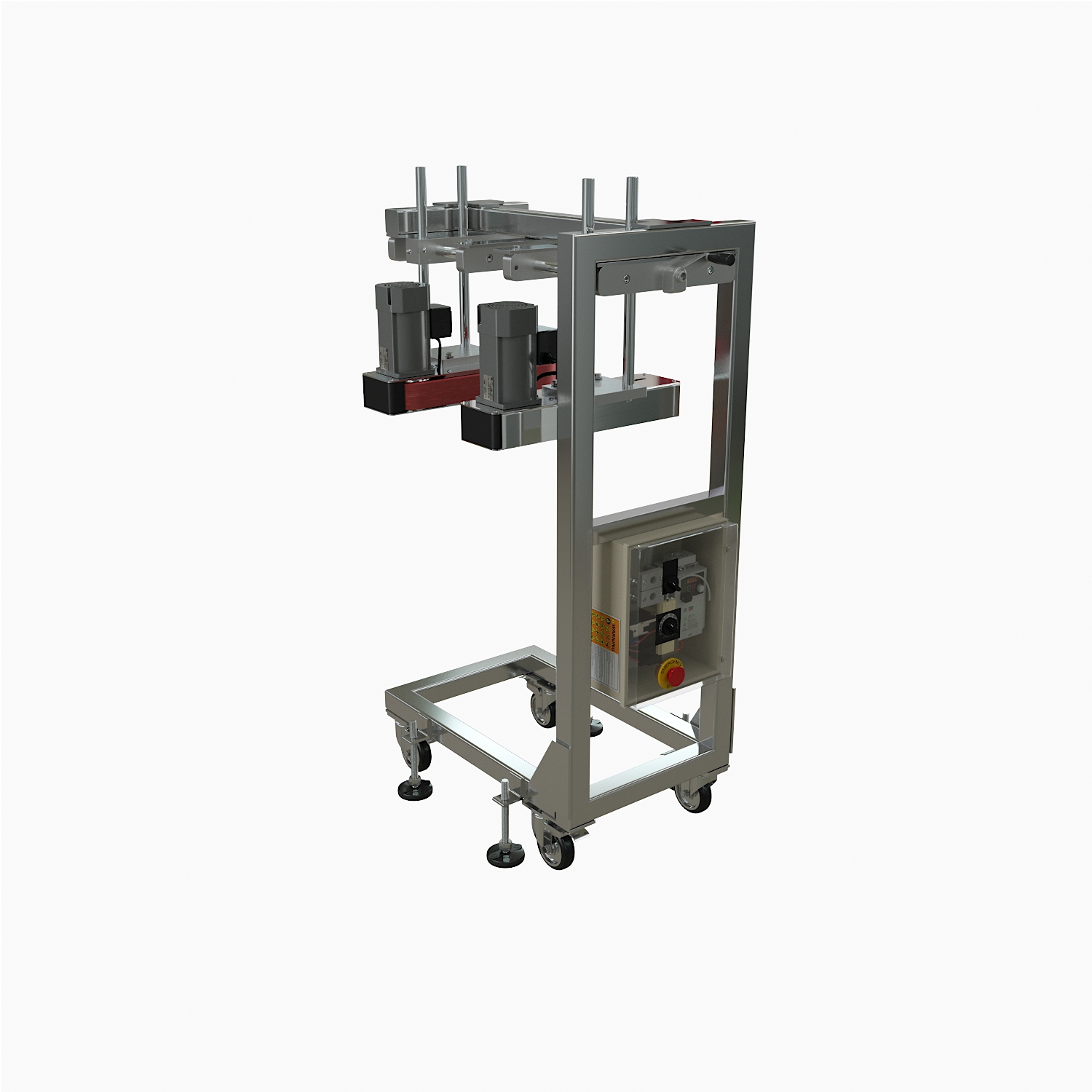

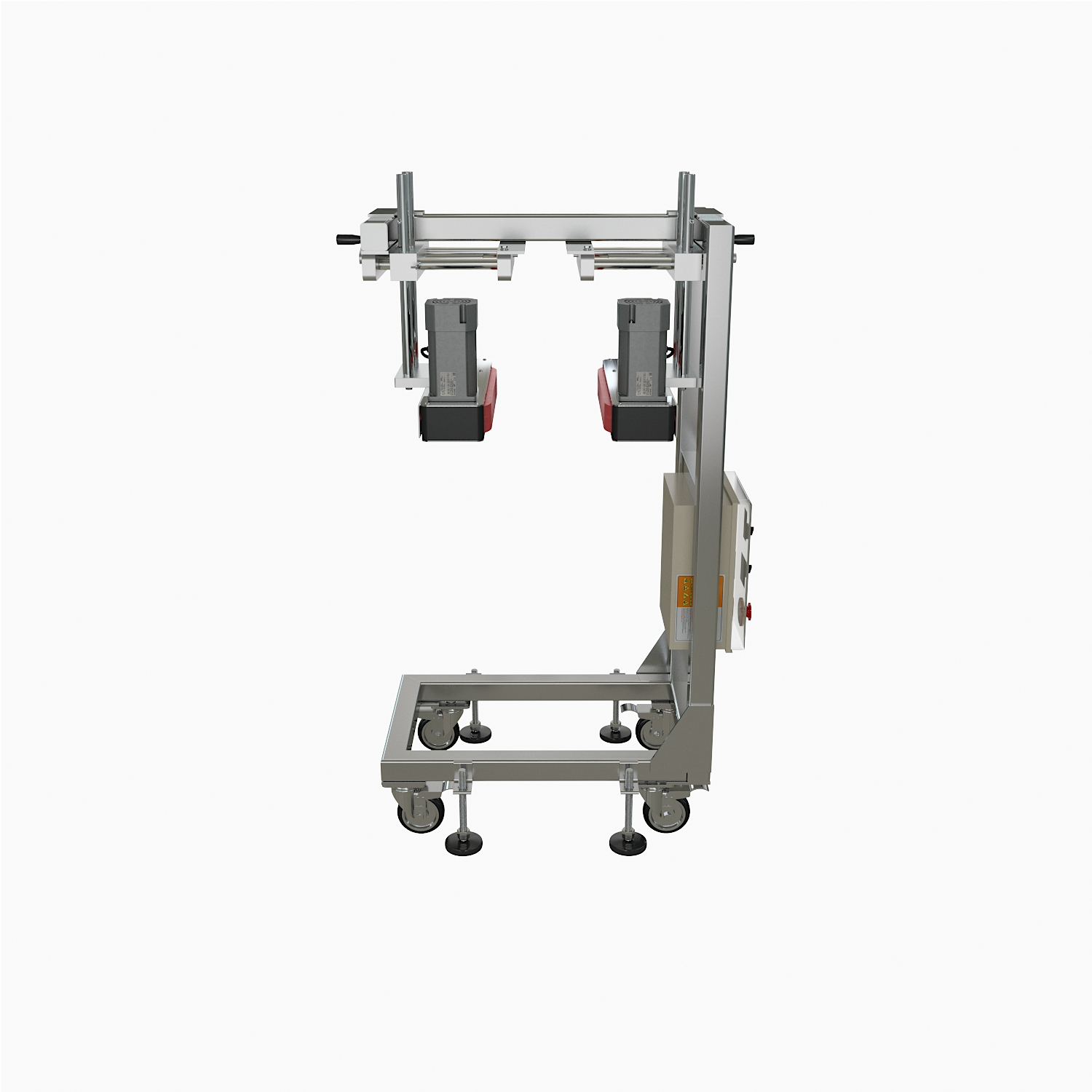

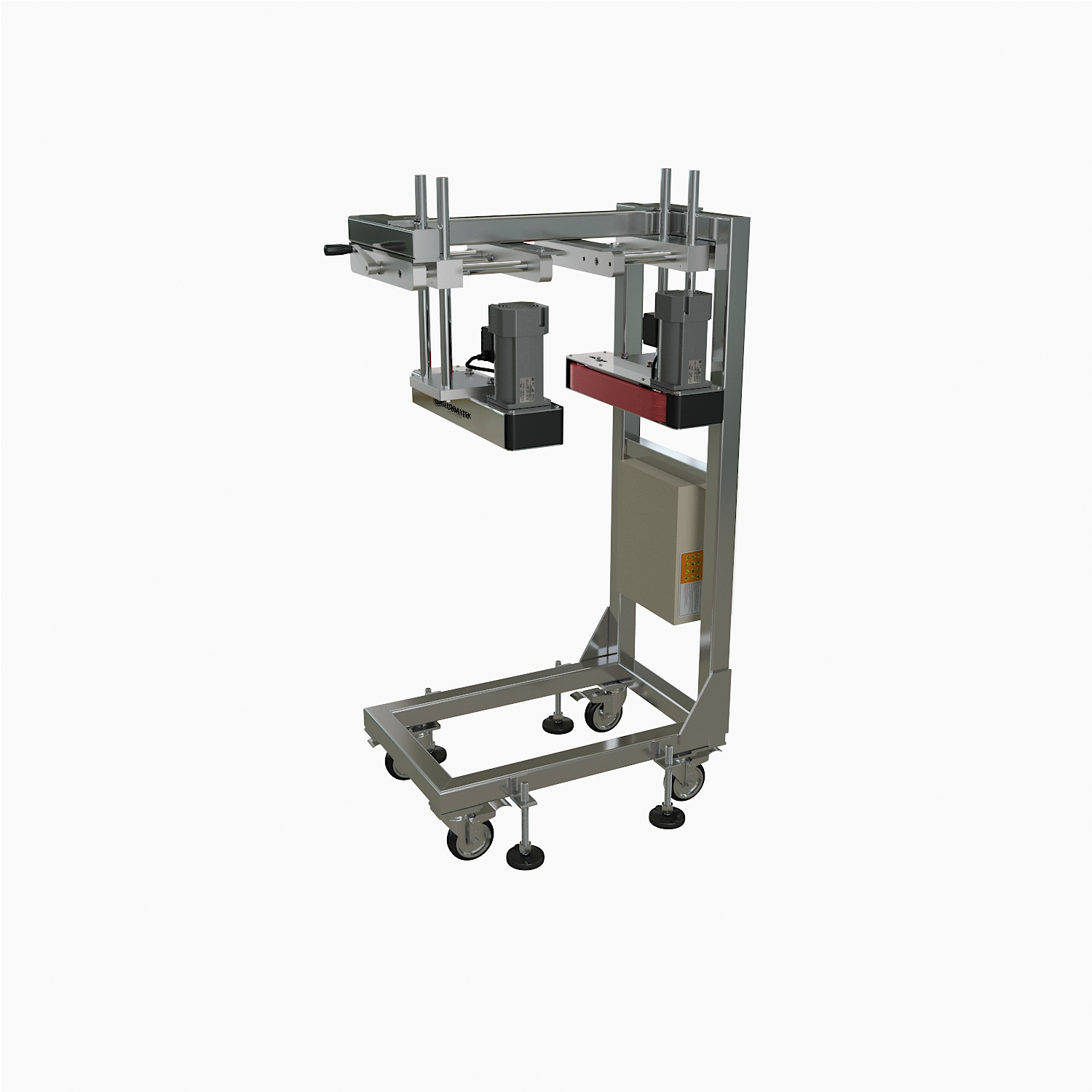

1. What is the main purpose of the 12FM Bottomless Conveyor?

This machine is designed to transfer containers between conveyors while enabling bottom coding, label inspection, de-pucking, or spacing. It grips containers from both sides using independently adjustable gripper belts and offers precise control with a variable speed drive.

2. What types of containers can it handle?

It accommodates round, square, or irregular containers up to 12” in diameter. Gripper belt spacing is adjustable from 0” to 12” to handle a wide range of product sizes.

3. Can it be integrated with existing conveyor systems?

Yes. The 12FM integrates seamlessly with all of our standard conveyors and most third-party inline conveyor systems. Custom mounting options are available if needed.

4. Is it suitable for food-grade or cleanroom applications?

Yes. The unit features a stainless-steel frame and UL-certified components. It can be configured for food, beverage, pharmaceutical, or sanitary environments upon request.

5. What motor and speed control does it use?

It comes equipped with an AC gearmotor and an LS variable frequency drive (VFD) for precise speed control. The system supports speeds up to 80 ft/min.

6. Is the belt spacing tool-free to adjust?

Yes. The gripper belts are independently adjustable using an easy-adjust handle wheel. No tools are required to change spacing.

7. What add-ons are available?

Optional features include a print head bracket, bottle sliding plate, and locking casters for added mobility and functionality.

8. What’s the maintenance requirement?

Minimal. The unit is built with durable components and designed for industrial use. Regular inspection of belts and cleaning of the frame is typically sufficient.

9. Do you offer custom builds or modifications?

Absolutely. We can adjust frame dimensions, motor type, belt configuration, or controls to match your line requirements. Contact us to discuss your setup.
