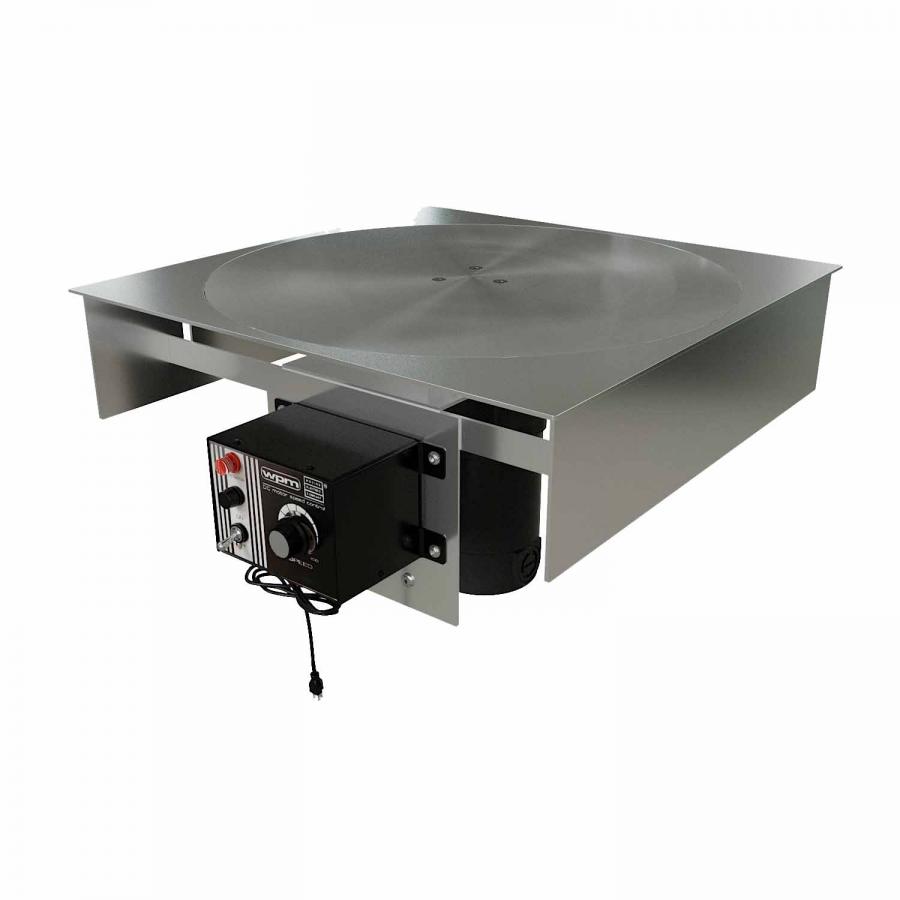

GLOBALTEK® Stainless Steel 12" and 18" Dia. Mounted Rotary Turn Table for 90° and 180° Turns ⚡
Enhance your production line’s efficiency with GLOBALTEK® Transfer Rotary Turn Tables, engineered to facilitate 90° and 180° transfers between inline conveyors. This versatile turntable system enables seamless directional changes without the need to bend guide rails. When paired with the adjustable transfer gate, it provides a smooth transition from one conveyor to another, maximizing adaptability and minimizing downtime.
MAIN FEATURES
- Made in the USA with 100% UL certified components
- Stainless-steel open frame or enclosed cabinet
- Disk thickness: 1/8″ (11 gauge)
- Supports both clockwise and counterclockwise rotation
- Bodine DC drive for rotation speed control
TECHINCAL DATA
- Motor: Bodine DC motor, 1/11 HP, 8 RPM, 500 lb/in
- Electrical requirements: 115 V / 1 PH / 60 Hz
- Rotary transfer table standard sizes: 12″ and 18″ (other sizes available upon request)
- Floor to disk: N/A
- Adjustable guide rail height: N/A
- Speed: 0 to 8 RPM
OPTIONAL FEATURES
- Adjustable transfer gate system
WARRANTY
- 12 months (limited warranty)
Frequently Asked Questions
1. What is the main purpose of this rotary turn table?

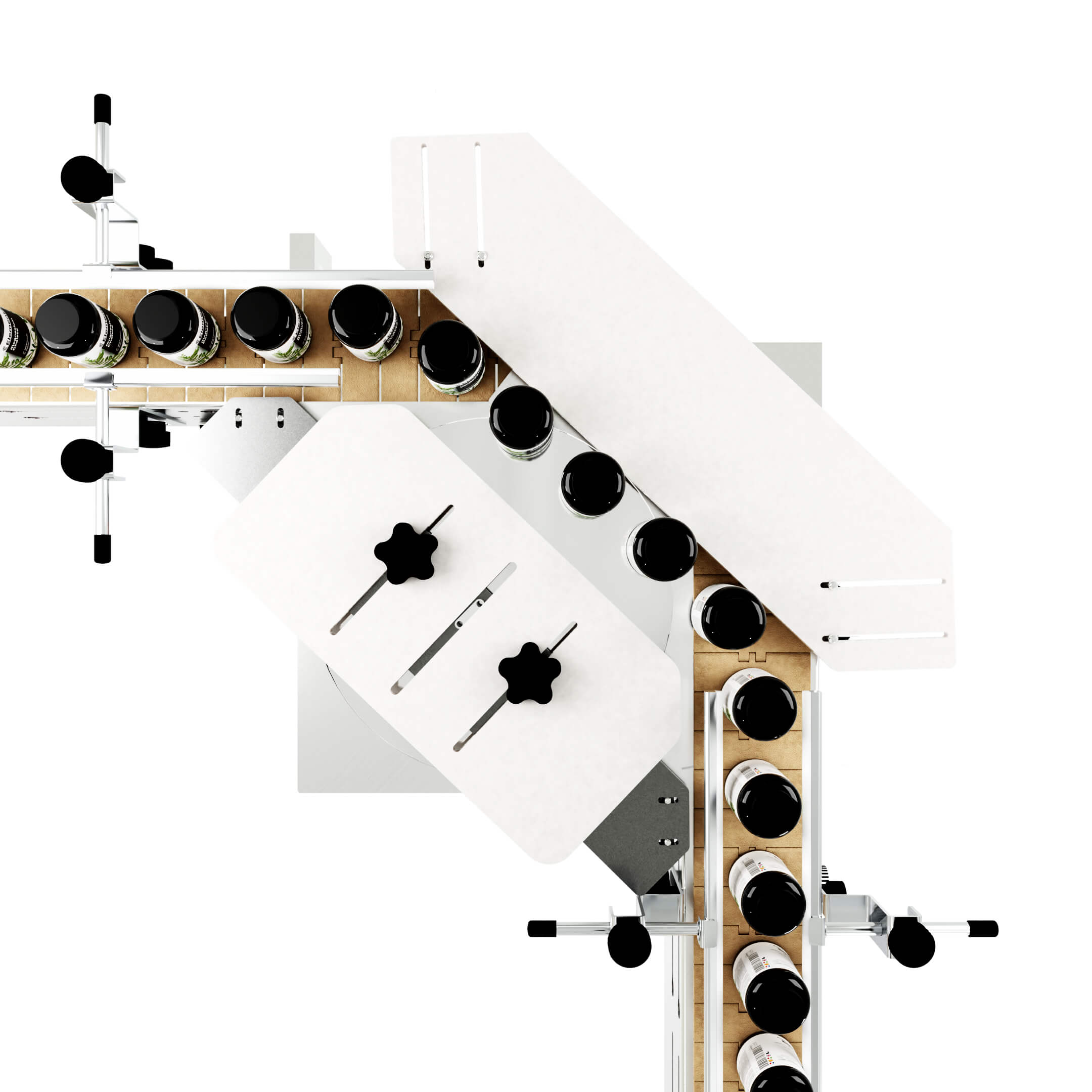

This turn table is designed to smoothly transfer products around 90° or 180° turns on conveyor lines, reducing product jams and maximizing layout efficiency.
2. What conveyor systems is this compatible with?
It integrates seamlessly with all Globaltek conveyors and most OEM conveyor systems.
3. What product sizes and weights can it handle?
The 12" and 18" diameter versions support small to medium-sized packages. Weight limits depend on your specific application, contact us for load testing specs.
4. Can this unit be used in sanitary or food-grade environments?
Yes. It’s constructed from stainless steel and suitable for use in food, beverage, and pharmaceutical lines. A washdown-rated motor is not standard but can be added upon request.
5. Is this rotary table motorized?
This is a motorized unit, ensuring controlled and consistent product rotation and alignment through the turn.
6. How does it prevent product slippage or misalignment?
You have two options:

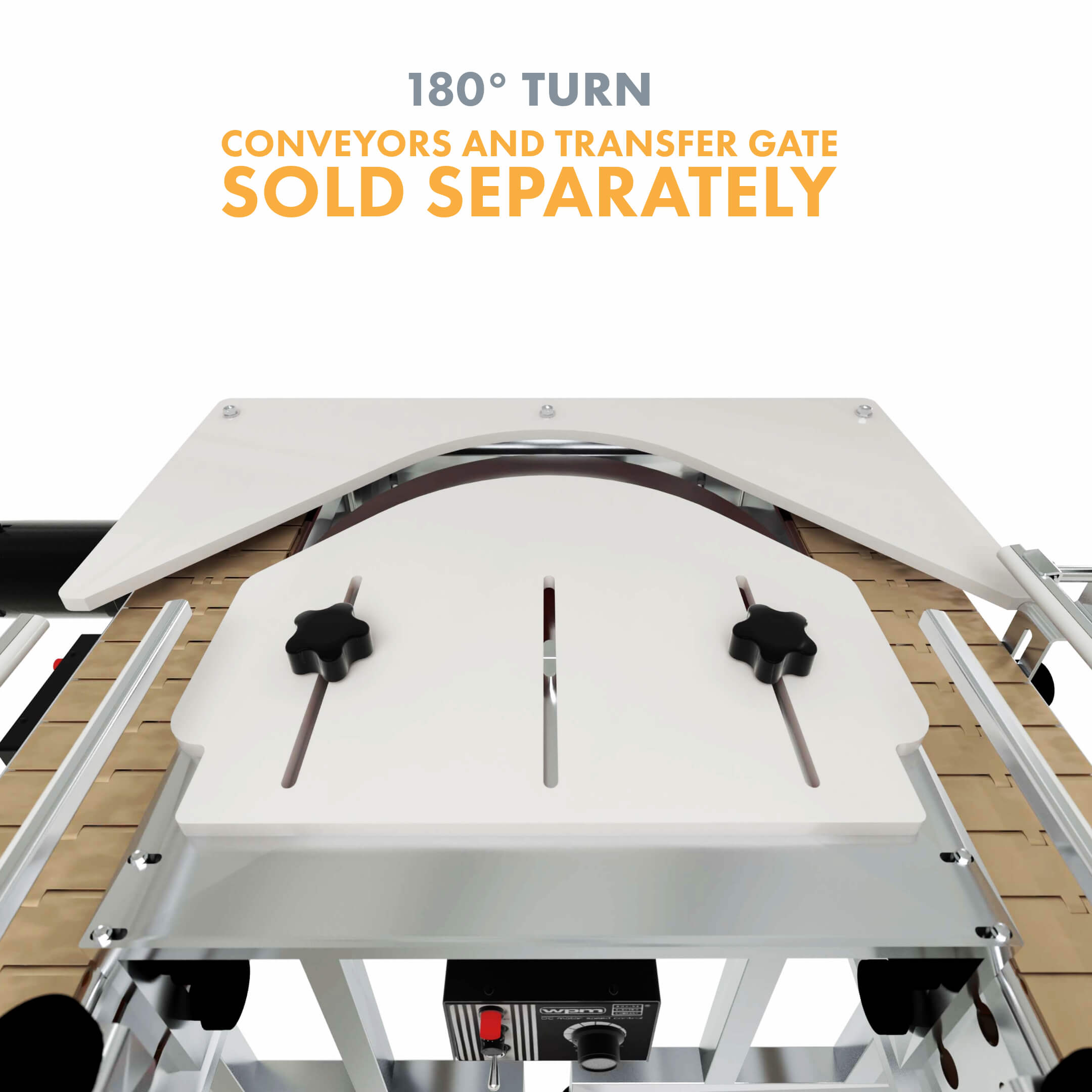

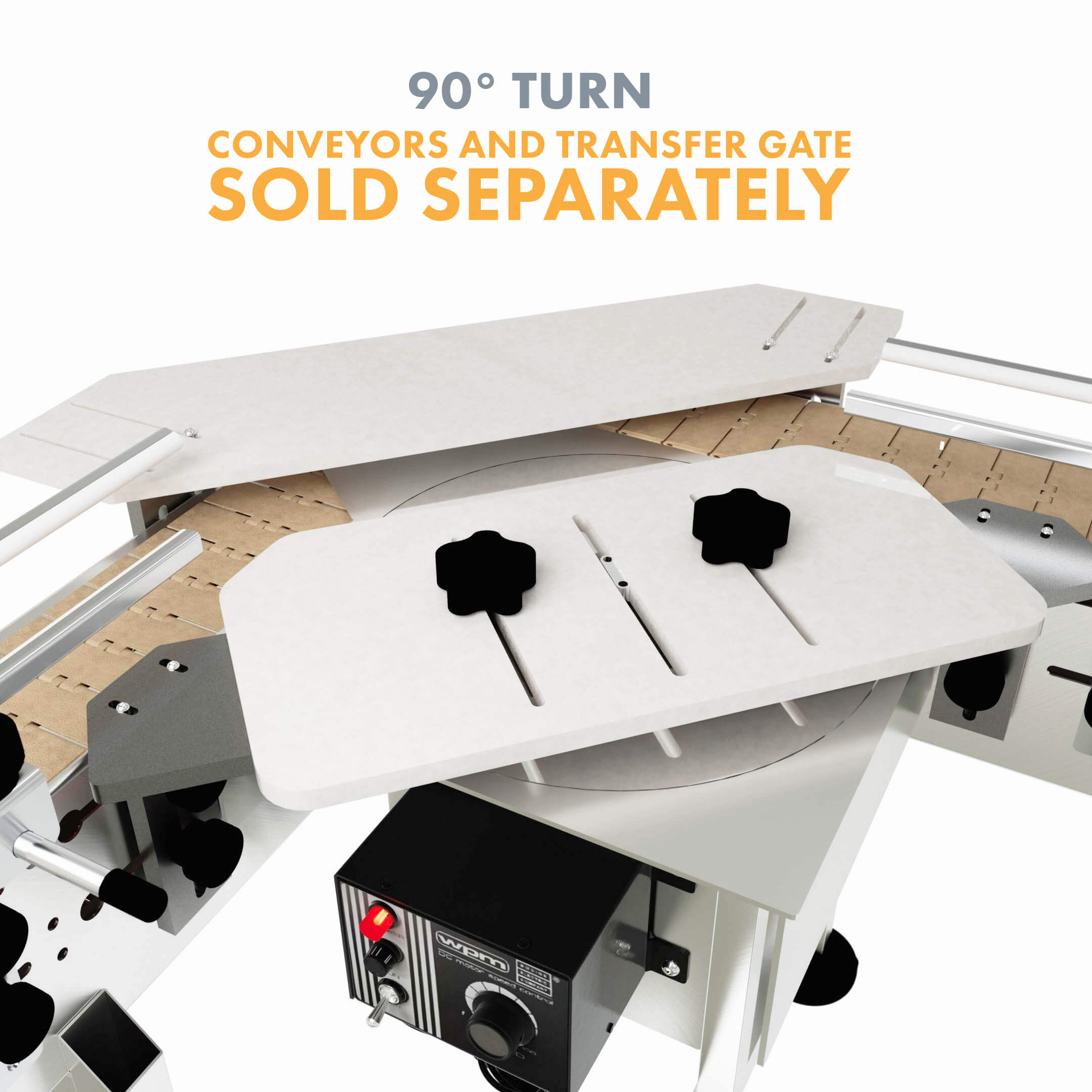

Best practice is to pair this turn table with our dedicated transfer gate system, designed for optimal product guidance and alignment through turns.
Alternatively, guide rails can be used, but we don’t recommend this long-term. High lateral force during rotation can bend or misalign standard rails, especially in high-throughput settings.
7. Is this unit height-adjustable?
No adjustment is needed. The rotary table is mounted directly to the conveyor system and sits flush, ensuring a seamless, level transfer with no elevation mismatch.
8. Can I choose between clockwise and counterclockwise rotation?
Clockwise rotation is standard, but we can configure it for counterclockwise upon request. Just contact us after placing your order to specify your preferred rotation direction.
9. What’s the maintenance requirement?
The rotary turn table is designed for minimal maintenance. It features durable stainless-steel construction and components built for industrial use. For full specs or maintenance guidelines, contact our team.
10. Do you offer customization?
Yes. We can modify table diameter, height, rotation speed, controls, and guardrails to suit your specific layout and product handling needs. Contact us for more information.
